| Detection condition |
- The retractable fastback control module cannot detect a pulse signal from the rear roof link motor (RH) when the rear roof link motor operation starts.
|
| Fail-safe |
- Stops retractable fastback operation
|
| Possible cause |

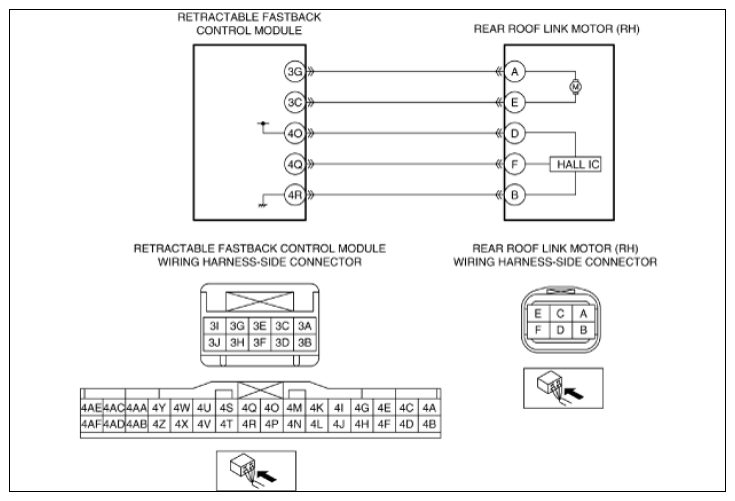

- Open circuit in wiring harness between the following terminals:
- Retractable fastback control module terminal 4Q and rear roof link motor (RH) terminal F
- Retractable fastback control module terminal 4R and rear roof link motor (RH) terminal B
- Retractable fastback control module terminal 4O and rear roof link motor (RH) terminal D
- Short to ground in wiring harness between the following terminals:
- Retractable fastback control module terminal 4Q and rear roof link motor (RH) terminal F
- Retractable fastback control module terminal 4O and rear roof link motor (RH) terminal D
- Short to power supply in wiring harness between the following terminals:
- Retractable fastback control module terminal 4Q and rear roof link motor (RH) terminal F
- Retractable fastback control module terminal 4R and rear roof link motor (RH) terminal B
- Line-to-line short circuit in wiring harness between the following terminals:
- Rear roof link motor (RH) terminal F and rear roof link motor (RH) terminal D
- Rear roof link motor (RH) terminal F and rear roof link motor (RH) terminal B
- Rear roof link motor (RH) terminal D and rear roof link motor (RH) terminal B
- Retractable fastback control module malfunction
- Rear roof link motor (RH) malfunction
|
