| Detection condition |
- The retractable fastback control module receives a signal from the rear roof link motor (RH) while the rear roof link motor (RH) is not operating.
|
| Fail-safe |
- Stops retractable fastback operation
|
| Possible cause |

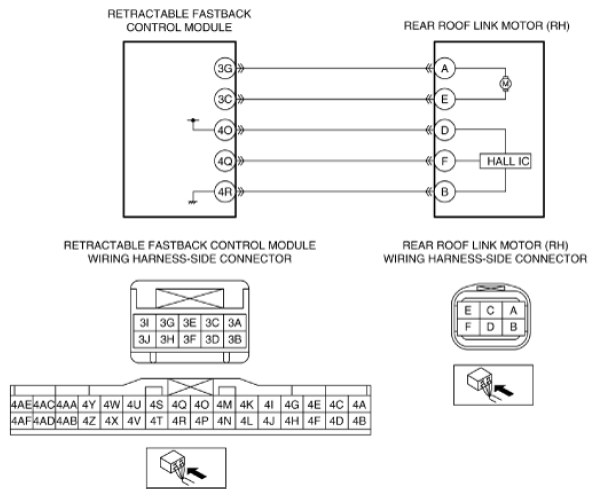

- Short to power supply in wiring harness between retractable fastback control module terminal 3G and rear roof link motor (RH) terminal A
- Short to power supply in wiring harness between retractable fastback control module terminal 3C and rear roof link motor (RH) terminal E
- Retractable fastback control module malfunction
- Rear roof link motor (RH) malfunction
|
|
|
