| Detection condition |
- The retractable fastback control module cannot detect a pulse signal from the Top lock motor when the Top lock motor operation starts.
|
| Fail-safe |
- Stops retractable fastback operation
|
| Possible cause |

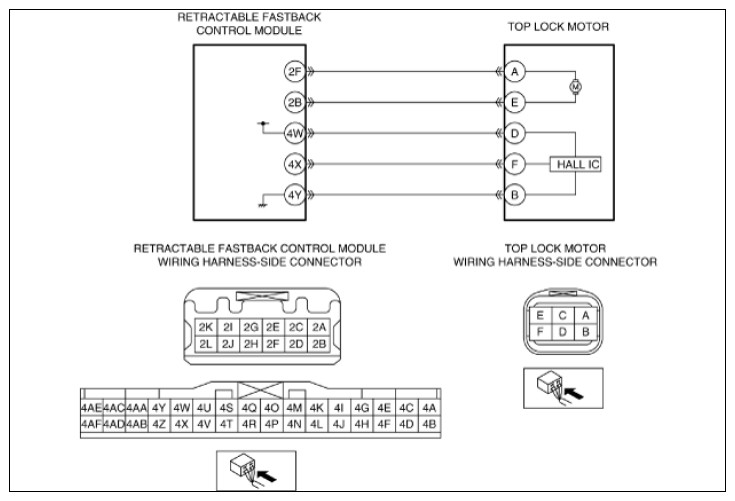

- Open circuit in wiring harness between the following terminals:
- Retractable fastback control module terminal 4X and Top lock motor terminal F
- Retractable fastback control module terminal 4Y and Top lock motor terminal B
- Retractable fastback control module terminal 4W and Top lock motor terminal D
- Short to ground in wiring harness between the following terminals:
- Retractable fastback control module terminal 4X and Top lock motor terminal F
- Retractable fastback control module terminal 4W and Top lock motor terminal D
- Short to power supply in wiring harness between the following terminals:
- Retractable fastback control module terminal 4X and Top lock motor terminal F
- Retractable fastback control module terminal 4Y and Top lock motor terminal B
- Line-to-line short circuit in wiring harness between the following terminals:
- Top lock motor terminal F and top lock motor terminal D
- Top lock motor terminal F and top lock motor terminal B
- Top lock motor terminal D and top lock motor terminal B
- Retractable fastback control module malfunction
- Top lock motor malfunction
|
