DTC B1DA6-29; Incorrect Top Lock Position: Notes

Description	Incorrect top lock position
Detection condition	The retractable fastback control module detects an incorrect top lock position.
Fail-safe	Stops retractable fastback operation
Possible cause	Short to ground in wiring harness between the following terminals: Retractable fastback control module terminal 1G and top lock switch terminal A Retractable fastback control module terminal 4L and front roof link limit switch (LH) terminal C Retractable fastback control module terminal 4M and front roof link limit switch (LH) terminal D Retractable fastback control module terminal 4K and front roof link limit switch (LH) terminal B Retractable fastback control module terminal 4I and rear roof link limit switch (LH) terminal A Retractable fastback control module terminal 4F and rear roof link limit switch (LH) terminal C Retractable fastback control module malfunction Top lock switch malfunction Front roof link limit switch (LH) malfunction Rear roof link limit switch (LH) malfunction

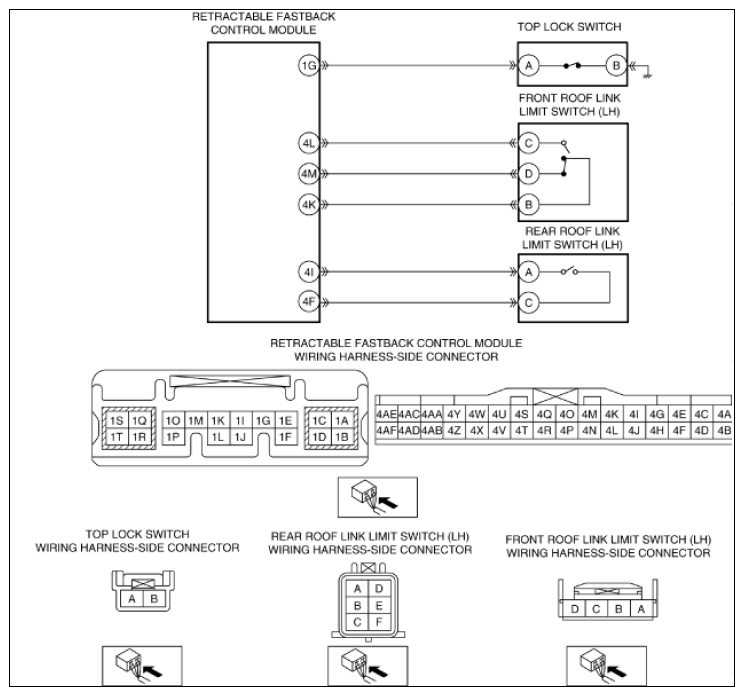

Fig 1: Retractable Fastback Control Module Communication Diagram (B1DA6 29)

Courtesy of MAZDA MOTORS CORP.
