| Detection condition |
- The retractable fastback control module detects that the number of times the top lock switch operates exceeds the maximum.
|
| Fail-safe |
- Stops retractable fastback operation and reverses rotation to unlock position
- Inhibits the open retractable fastback operation.
|
| Possible cause |

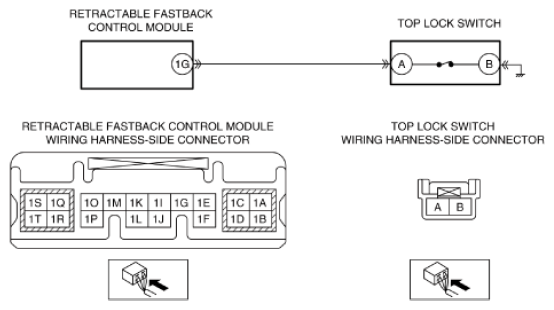

- Open circuit in wiring harness between retractable fastback control module terminal 1G and top lock switch terminal A
- Open circuit in wiring harness between top lock switch terminal A and body ground
- Retractable fastback control module malfunction
- top lock switch malfunction
|
|
|
