| Detection condition |
- The retractable fastback control module detects an incorrect front roof position.
|
| Fail-safe |
- Stops retractable fastback operation
|
| Possible cause |

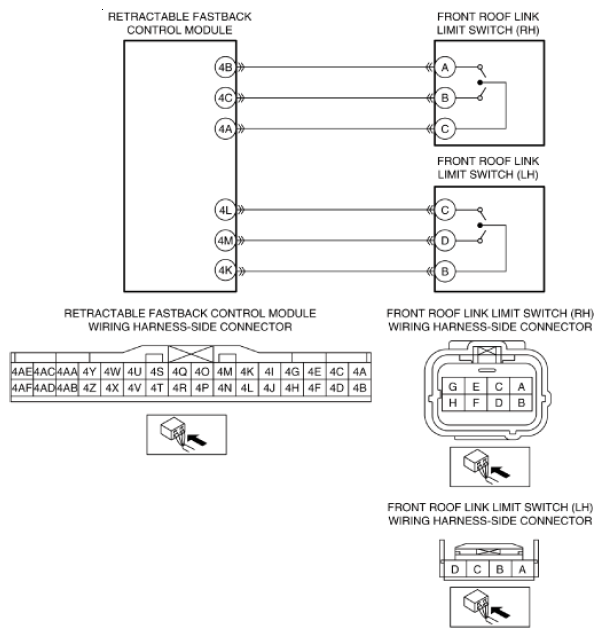

- Short to ground in wiring harness between the following terminals:
- Retractable fastback control module terminal 4B and front roof link limit switch (RH) terminal A
- Retractable fastback control module terminal 4C and front roof link limit switch (RH) terminal B
- Retractable fastback control module malfunction
- Front roof link limit switch (RH) malfunction
|
|
|
