| Detection condition |
- The retractable fastback control module detects an incorrect roof position.
|
| Fail-safe |
- Stops retractable fastback operation
|
| Possible cause |

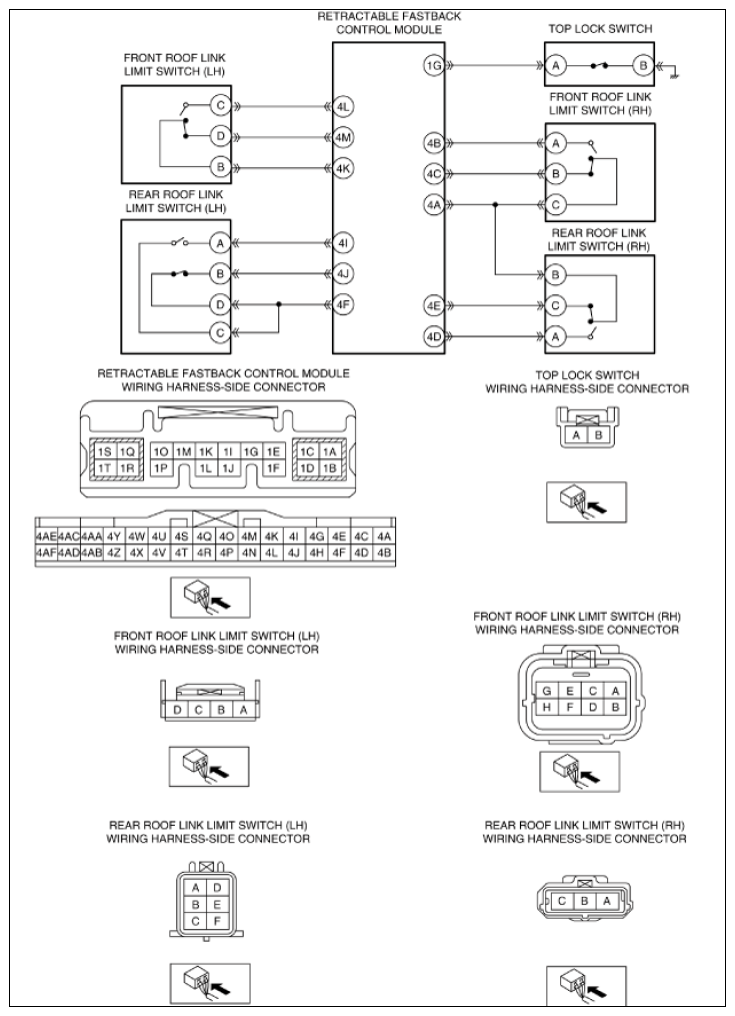

- Open circuit in wiring harness between the following terminals:
- Retractable fastback control module terminal 1G and top lock switch terminal A
- top lock switch terminal B and body ground
- Retractable fastback control module terminal 4B and front roof link limit switch (RH) terminal A
- Retractable fastback control module terminal 4C and front roof link limit switch (RH) terminal B
- Retractable fastback control module terminal 4A and front roof link limit switch (RH) terminal C
- Retractable fastback control module terminal 4L and front roof link limit switch (LH) terminal C
- Retractable fastback control module terminal 4M and front roof link limit switch (LH) terminal D
- Retractable fastback control module terminal 4K and front roof link limit switch (LH) terminal B
- Retractable fastback control module terminal 4D and rear roof link limit switch (RH) terminal A
- Retractable fastback control module terminal 4A and rear roof link limit switch (RH) terminal B
- Retractable fastback control module terminal 4E and rear roof link limit switch (RH) terminal C
- Retractable fastback control module terminal 4I and rear roof link limit switch (LH) terminal A
- Retractable fastback control module terminal 4J and rear roof link limit switch (LH) terminal B
- Retractable fastback control module terminal 4F and rear roof link limit switch (LH) terminal C
- Retractable fastback control module terminal 4F and rear roof link limit switch (LH) terminal D
- Short to ground in wiring harness between the following terminals:
- Retractable fastback control module terminal 4B and front roof link limit switch (RH) terminal A
- Retractable fastback control module terminal 4C and front roof link limit switch (RH) terminal B
- Retractable fastback control module terminal 4A and front roof link limit switch (RH) terminal C
- Retractable fastback control module terminal 4L and front roof link limit switch (RH) terminal C
- Retractable fastback control module terminal 4M and front roof link limit switch (RH) terminal D
- Retractable fastback control module terminal 4K and front roof link limit switch (RH) terminal B
- Retractable fastback control module terminal 4D and rear roof link limit switch (LH) terminal A
- Retractable fastback control module terminal 4A and rear roof link limit switch (LH) terminal B
- Retractable fastback control module terminal 4E and rear roof link limit switch (LH) terminal C
- Retractable fastback control module terminal 4I and rear roof link limit switch (LH) terminal A
- Retractable fastback control module terminal 4J and rear roof link limit switch (LH) terminal B
- Retractable fastback control module terminal 4F and rear roof link limit switch (LH) terminal C
- Retractable fastback control module malfunction
- Top lock switch malfunction
- Front roof link limit switch (RH) malfunction
- Front roof link limit switch (LH) malfunction
- Rear roof link limit switch (RH) malfunction
- Rear roof link limit switch (LH) malfunction
|
