Troubleshooting Procedure

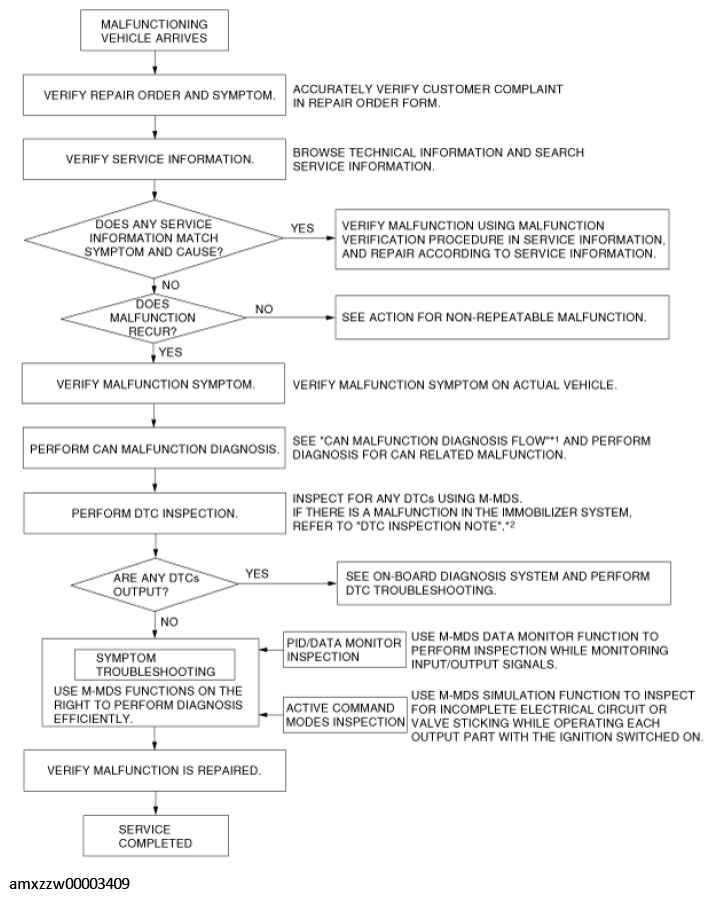

Fig 1: Retractable Fastback Control Module Diagnosis Flowchart

Courtesy of MAZDA MOTORS CORP.

Action for Non-repeatable Malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:
  • Verify that a DTC has been recorded in the memory. (See DTC INSPECTION [RETRACTABLE FASTBACK CONTROL MODULE] ).
  • Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.
  • Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for malfunction or occurrence of any DTCs.
    Fig 2: Checking Electrical Component Wiring Harness And Connector

    Courtesy of MAZDA MOTORS CORP.
  • Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection.
  Fig 3: Checking Electric Component Connector Female Terminals

  Courtesy of MAZDA MOTORS CORP.
