On-Board Diagnostic Wiring Diagram [Retractable Fastback Control Module]

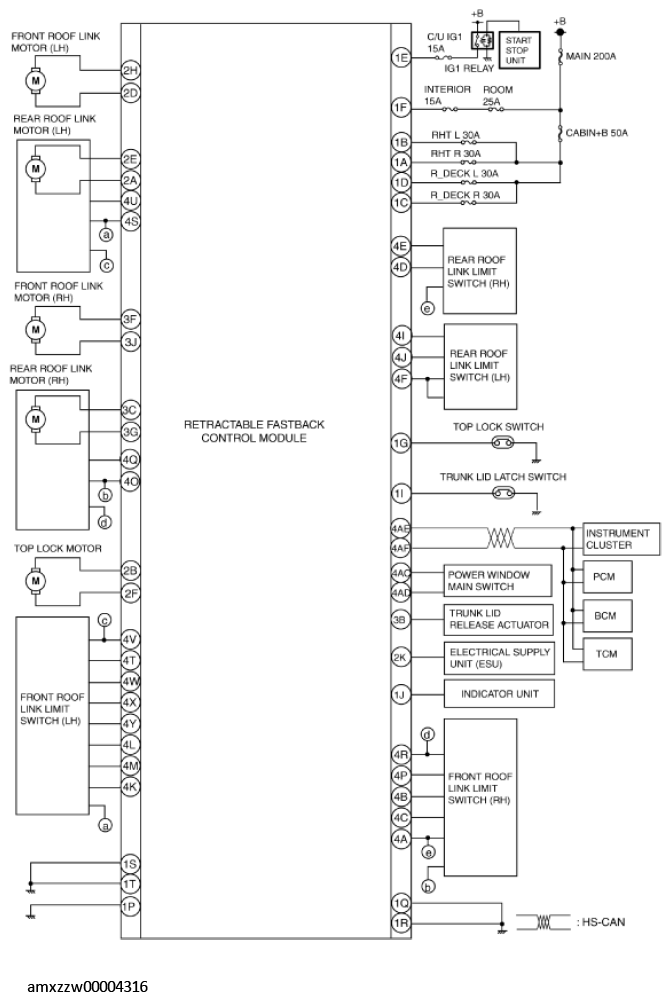

Fig 1: Retractable Fastback Control Module Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
