OBD-II Drive Mode

• Using the OBD-II Drive Mode, the monitoring item requested by OBD-II regulations can be easily diagnosed.
• Performing the Drive Mode inspects the OBD-II system for proper operation and must be performed to ensure that no additional DTCs are present.
• The OBD-II Drive Mode is divided into the specific Drive Mode and single Drive Mode.
• For the specific Drive Mode, specified Drive Modes have been set for each individual monitoring item requested by OBD-II regulations, and they can be diagnosed individually. For the single Drive Mode, the entire monitoring item requested by OBD-II regulations can be diagnosed.
• The following modes are in the specific Drive Mode. The applicable system is diagnosed by driving in the following Drive Modes.
  • Mode 03 (Variable Valve Timing, A/F Sensor, HO2S and TWC Repair Verification Drive Mode)
  • Mode 06 (EVAP System Repair Verification Drive Mode)
• The following systems are diagnosed with the single Drive Mode.
  • Oxygen sensor (A/F sensor, HO2S)
  • Catalytic converter (TWC)
  • Evaporative (EVAP) system
  CAUTION:

  • While performing the Drive Mode, always operate the vehicle in a safe and lawful manner.
  • When the M-MDS is used to observe monitor system status while driving, be sure to have another technician with you, or record the data in the M-MDS using the PID/DATA MONITOR AND RECORD function and inspect later.
  NOTE:

  • Vehicle speed and engine speed detected by the PCM may differ from that indicated by the speedometer and tachometer. Use the M-MDS to monitor vehicle speed.
  • If the OBD-II system inspection is not completed during the Drive Mode, the following causes are considered:
    • The OBD-II system detects the malfunction.
    • The Drive Mode procedure is not completed correctly.
  • Disconnecting the battery will reset the memory. Do not disconnect the battery during and after Drive Mode.
  • The M-MDS can be used at anytime through the course of the Drive Mode to monitor the completion status. Monitoring can be done by viewing the ON BOARD SYSTEM READINESS menu.
  • The OBD monitoring status can be confirmed with the ignition switch operation. During KOEO, the check engine light illuminates for a fail-light inspection for approx. 17 s. The OBD monitoring status is confirmed after the fail-light inspection.
    • If all of the diagnosis is completed even one time, the check engine light will continue to illuminate.
    • If all of the diagnosis is not completed, the check engine light flashes for approx. 7 s, and then it illuminates until the engine is started.

Mode 03 (Variable Valve Timing, A/F Sensor, HO2S and TWC Repair Verification Drive Mode)

1. Start the engine and warm it up completely.
2. Verify all accessory loads (A/C, headlights, blower fan, rear window defogger) are off.
3. Drive the vehicle as shown in the graph.

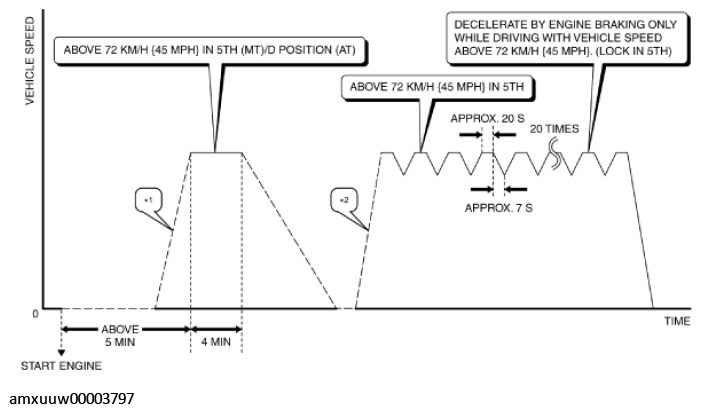

   Fig 1: Vehicle Speed Timing Graph

   Courtesy of MAZDA MOTORS CORP.

   *1 :MT: Accelerate to72 km/h {45 mph} within 20 s. (Shift to the 3rd gear until the vehicle speed reaches32 km/h {20 mph}, then continue accelerating to72 km/h {45 mph}with the gear in 3rd)./AT: Accelerate in D position. (accelerate to72 km/h {45 mph} within 20 s).

   *2 :MT: Accelerate to72 km/h {45 mph} within 20 s. (Shift to the 3rd gear until the vehicle speed reaches32 km/h {20 mph}, then continue accelerating to72 km/h {45 mph}with the gear in 3rd)./AT: Accelerate to72 km/h {45 mph} within 20 s.

4. Stop the vehicle and access the ON BOARD SYSTEM READINESS menu of GENERIC OBD-II FUNCTION to verify the OBD monitoring status.
   • If completed, the OBD monitoring status items change from non-completed to completed.
   • If not completed, switch the ignition off then repeat from Step 3.
5. Access the DIAGNOSTIC MONITORING TEST RESULTS menu of GENERIC OBD-II FUNCTIONS to verify the monitor results.
   • If detected values are not within specification, repair has not been completed.
6. Verify that no DTCs are displayed.

   Mode 06 (EVAP System Repair Verification Drive Mode)

   NOTE:

   • If "EVAP System Repair Verification Drive Mode" cannot be performed (it is impossible to drive the vehicle under this Drive Mode condition), perform the evaporative system test procedure as an alternative. (See ENGINE CONTROL SYSTEM OPERATION INSPECTION ).
   1. Verify that all of the following PIDs are within the following specifications. All PIDs must be within specifications before the engine is started to initiate the evaporative system test.
      • IAT:5-35 °C {41-95 °F}
      • FLI:15-85 %
      • BARO:Above 72.2 kPa {0.736 kgf/cm2, 10.5 psi}
   2. Start the engine and warm it up completely.
   3. Clear the DTCs from the PCM memory using the M-MDS. (See AFTER REPAIR PROCEDURE [PCM (SKYACTIV-G2.0)] ).
   4. Drive the vehicle as shown in the graph.

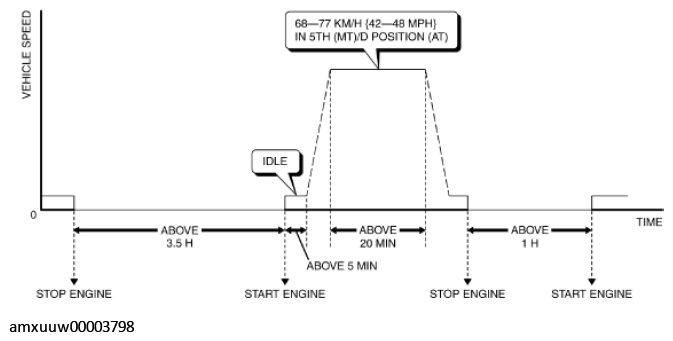

      Fig 2: Vehicle Speed Timing Graph

      Courtesy of MAZDA MOTORS CORP.
   5. Access the ON BOARD SYSTEM READINESS to verify the OBD monitoring status.
      • If completed, the OBD monitoring status items change from non-completed to completed.
      • If not completed, switch the ignition off then go back to Step 1.
   6. Access the DIAGNOSTIC MONITORING TEST RESULTS to verify the monitor results.
      • If detected values are not within specification, repair has not been completed.
   7. Verify that no DTCs are displayed.

   Single Drive Mode

   1. Verify all accessory loads (A/C, headlights, blower fan, rear window defogger) are off.
   2. Verify that all of the following PIDs are within the following specifications. All PIDs must be within specifications before the engine is started to initiate the evaporative system test.
      • IAT:5-35 °C {41-95 °F}
      • FLI:15-85 %
      • BARO:Above 72.3 kPa {0.737 kgf/cm2, 10.5 psi}
   3. Start the engine and warm it up completely.
   4. Clear the DTCs from the PCM memory using the M-MDS. (See AFTER REPAIR PROCEDURE [PCM (SKYACTIV-G2.0)] ).
   5. With the vehicle stopped, race the engine at the engine speed indicated, and then drive the vehicle as shown in the graph. The driving conditions before driving at constant speed are not specified. If possible, monitor the RPM PID for engine speed during this procedure.

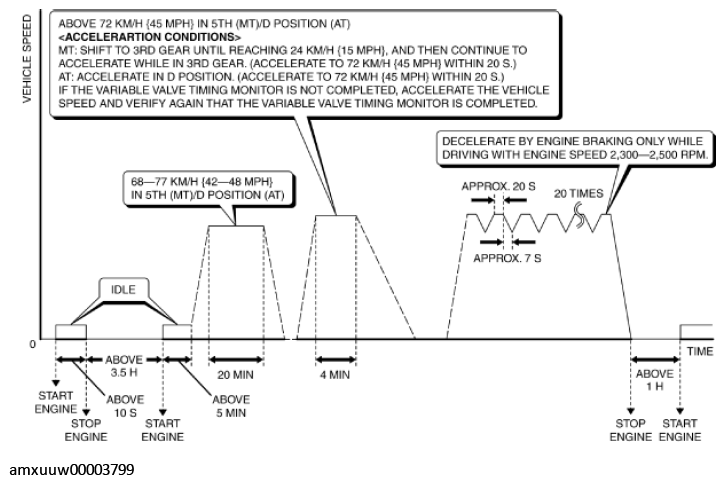

      Fig 3: Vehicle Speed Timing Graph

      Courtesy of MAZDA MOTORS CORP.
   6. Access the ON BOARD SYSTEM READINESS to verify the OBD monitoring status.
      • If completed, all of the OBD monitoring status items change from non-completed to completed.
      • If not completed, switch the ignition off, then perform the applicable specific Drive Mode for any monitoring item that was not in the detection condition.
   7. Access the DIAGNOSTIC MONITORING TEST RESULTS to verify the monitor results.
      • If detected values are not within specification, repair has not been completed.
