Steering Gear And Linkage Assembly: Notes
CAUTION:
- To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

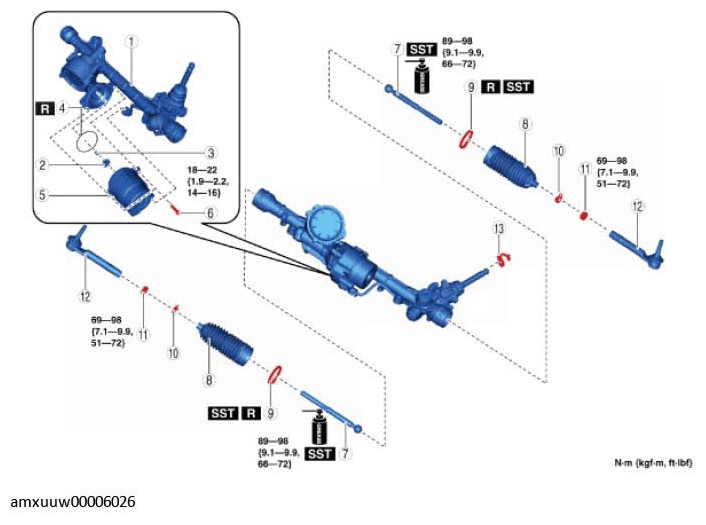

- Assemble in the order shown in the figure.
- Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION ).
COMPONENT DESCRIPTION
| 1 | Steering gear |
| 2 | Rubber (See Rubber, Spacer and EPS CM Assembly Note .) |
| 3 | Spacer (See Rubber, Spacer and EPS CM Assembly Note .) |
| 4 | O-ring |
| 5 | EPS CM (See Rubber, Spacer and EPS CM Assembly Note .) |
| 6 | Bolt |
| 7 | Tie rod (See Tie Rod Assembly Note .) |
| 8 | Boot |
| 9 | Boot band (See Boot Band Assembly Note .) |
| 10 | Boot clamp |
| 11 | Locknut |
| 12 | Tie-rodend (See Tie-rod End Assembly Note .) |
| 13 | Clip |
