DTC B1DA9-2B; Retractable Fastback Switch Circuit Malfunction: Notes

Description Retractable fastback switch circuit malfunction
Detection condition
  • The retractable fastback control module detects that the retractable fastback switch is in the ON or OFF condition for 30 s.
Fail-safe
  • Stops retractable fastback operation
Possible cause

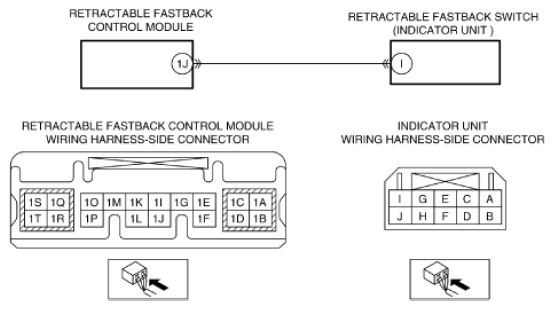

  • Short to ground in wiring harness between retractable fastback control module terminal 1J and indicator unit terminal I
  • Retractable fastback control module malfunction
  • Indicator unit malfunction
G11275663
