360° View Monitor System Aiming (Batch Aiming) Procedure: Notes

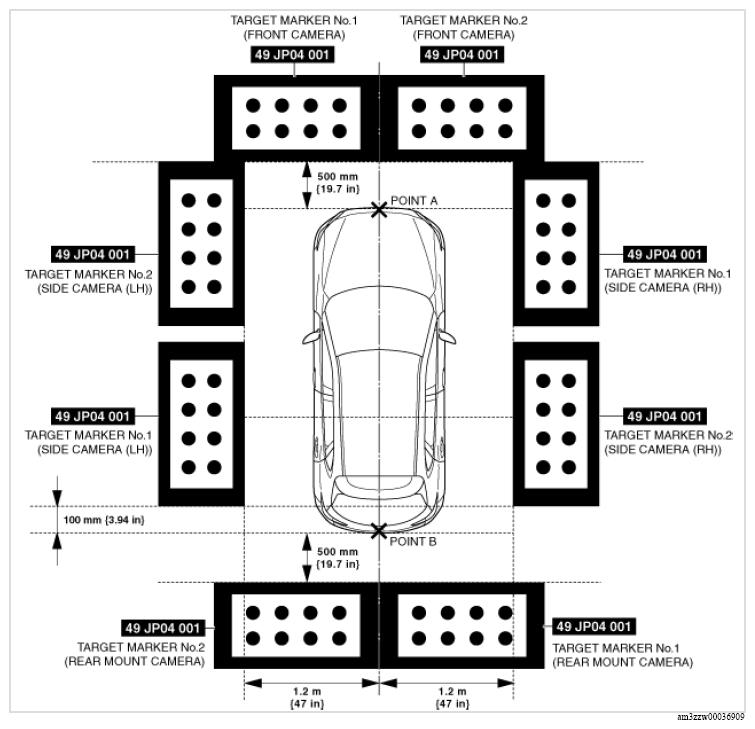

- Position the SSTs at the positions shown in the figure.
- Connect the M-MDS to the DLC-2.
- Close all the doors (front door, rear door) and the trunk lid (4SD)/liftgate (5HB).
- Verify that the outer mirrors are unfolded.
- Operate the electric parking brake.
- Shift the selector lever to the P position. (ATX)
- Shift the shift lever to the neutral position. (MTX)
- After vehicle identification is completed, select the following from the M-MDS initial screen.
- [Toolbox]
- [Work Support]
- [i-ACTIVSENSE]
- [Static aiming]
- [Static aiming for 360° View Monitor System]
- Perform the 360° view monitor system aiming according to the directions on the M-MDS.
- Verify the M-MDS display.
- If [Procedure completed successfully] is displayed
- The 360° view monitor system aiming is completed. Perform the 360° view monitor system screen display verification procedure. (See 360° View Monitor System Screen Display Verification Procedure .)
- If [Procedure not completed successfully] is displayed.
- Perform an inspection according to the following table for the error code procedure.
- If an error code other than the error codes in the following table is displayed, verify the following and perform the 360° view monitor system aiming again if there is no malfunction, as there could be a communication error between the 360° view monitor unit and the diagnostic tester.
- Is the battery positive voltage for the vehicle 8 V or more?
- Is the ignition switched to ACC or ON (engine off or on)?
- If [Procedure completed successfully] is displayed
| Error code | Detection Condition |
|---|---|
| 03 | Target marker No. 1 of rear mount camera is not detected |
| 04 | Target marker No. 2 of rear mount camera is not detected |
| 06 | Target marker No. 1 of side camera (LH) is not detected |
| 07 | Target marker No. 2 of side camera (LH) is not detected |
| 09 | Target marker No. 1 of front camera is not detected |
| 0A | Target marker No. 2 of front camera is not detected |
| 0C | Target marker No. 1 of side camera (RH) is not detected |
| 0D | Target marker No. 2 of side camera (RH) is not detected |
| 10 | Input vehicle value exceeds specification |
| 12 | Because the following aiming implementation conditions are not met, the aiming is not completed.
|
| 15 | Aiming is not possible due to malfunction in 360° view monitor control module |
| 16 | 360° view monitor control module cannot receive rear mount camera images |
| 17 | 360° view monitor control module cannot receive side camera (LH) images |
| 18 | 360° view monitor control module cannot receive front camera images |
| 19 | 360° view monitor control module cannot receive side camera (RH) images |
| 1A | Power supply to camera insufficient |
