DTC P025C-00: Fuel Pump Control Module Result Of On-Board Diagnostic Test Low Input (Pcm): Outline

DTC P025C:00 (PCM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Fuel pump control module result of on-board diagnostic test low input
Detection condition	Result of on-board test cannot be received from fuel pump control module (voltage is too low).
Fail-safe	Not applicable
Possible cause	Fuel pump control module connector or terminals malfunction PCM connector or terminals malfunction Short to ground in fuel pump control module signal circuit Open circuit in fuel pump control module signal circuit Fuel pump control module malfunction PCM malfunction

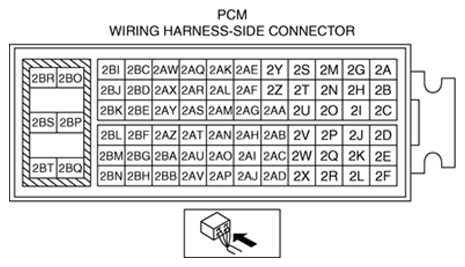

Courtesy of MAZDA MOTORS CORP.

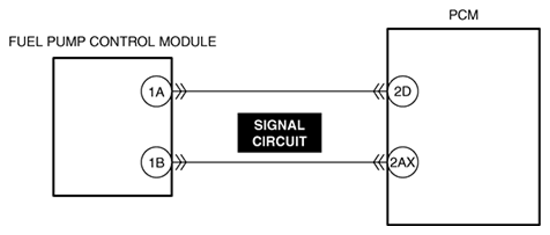

Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
