DTC P061F-00: Internal Control Module Throttle Valve Actuator Controller Performance Problem (Pcm): Outline

DTC P061F:00 (PCM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Internal control module throttle valve actuator controller performance problem

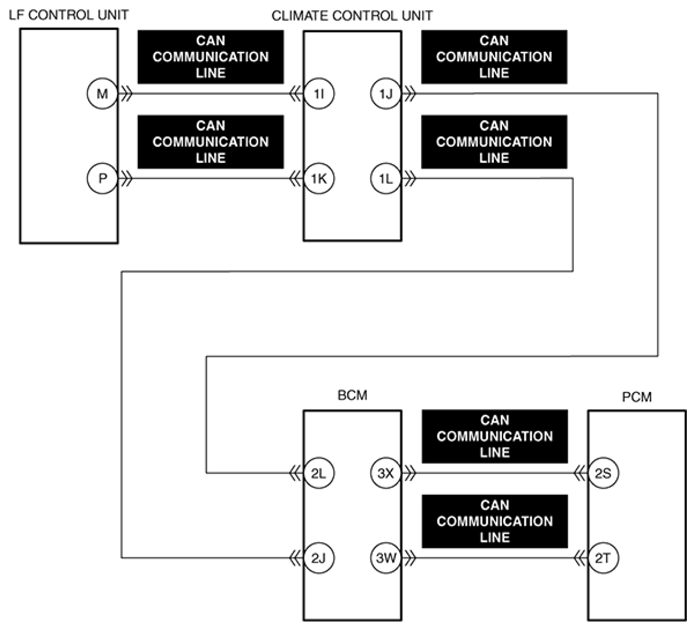

Detection condition	When any of the following conditions is met: LF control unit internal malfunction CAN communication line malfunction between LF control unit and PCM PCM internal malfunction
Fail-safe	Not applicable
Possible cause	CAN communication line malfunction between LF control unit and PCM LF control unit connector or terminals malfunction PCM connector or terminals malfunction LF control unit malfunction PCM malfunction
