DTC U0336-00: SAS Control Module Error (Pcm): Outline

DTC U0336:00 (PCM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	SAS control module error
Detection condition	When any of the following conditions is met: CAN communication line malfunction between SAS control module and PCM SAS control module internal malfunction
Fail-safe	Not applicable
Possible cause	CAN drive error (SAS control module or PCM) CAN communication line malfunction between SAS control module and PCM SAS control module connector or terminals malfunction PCM connector or terminals malfunction SAS control module malfunction PCM malfunction

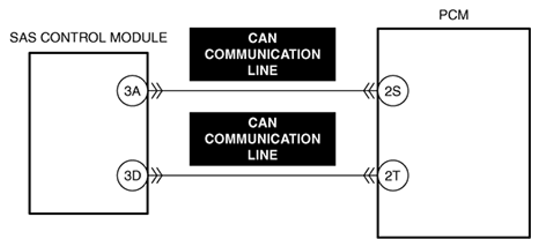

Courtesy of MAZDA MOTORS CORP.

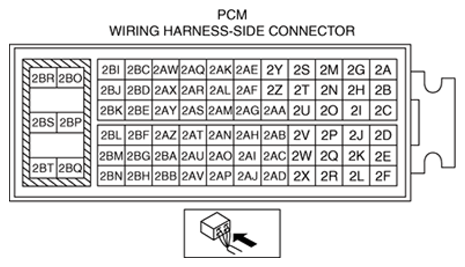

Courtesy of MAZDA MOTORS CORP.

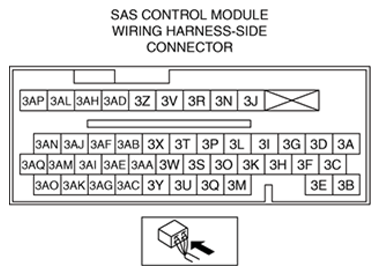

Courtesy of MAZDA MOTORS CORP.
