Down Switch: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)

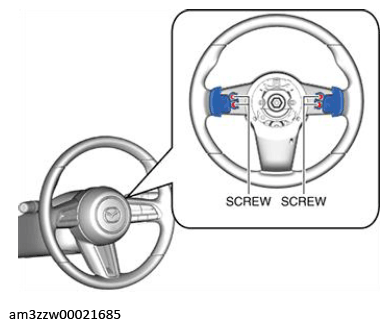

  2. Remove the screw.
    G13176964Courtesy of MAZDA MOTORS CORP.

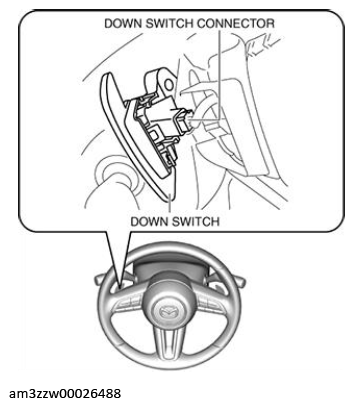

  3. Disconnect the down switch connector.
    G13176965Courtesy of MAZDA MOTORS CORP.
  4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  5. Verify that the continuity between down switch component terminals A and B.
G13176963Courtesy of MAZDA MOTORS CORP.
