360° View Monitor Control Module Removal/Installation [(Us)]

CAUTION:

When replacing the 360° view monitor control module, perform the configuration to assure that the system operates correctly. (See CONFIGURATION .)

Remove the front seat under cover. (with power seat) (See FRONT SEAT REMOVAL/INSTALLATION [ (US)] .)

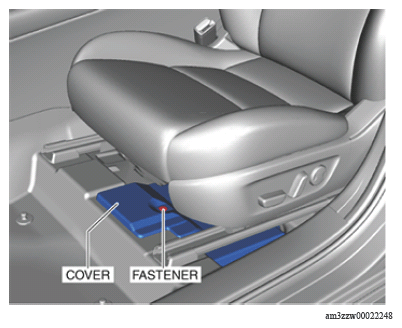

Slide the front seat (LH) rearward.
Remove the fastener.

Courtesy of MAZDA MOTORS CORP.

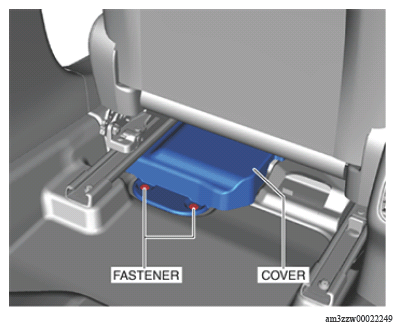

Slide the front seat (LH) forward.
Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.
Remove the cover.
Slide the front seat (LH) rearward.
Remove the bolts.

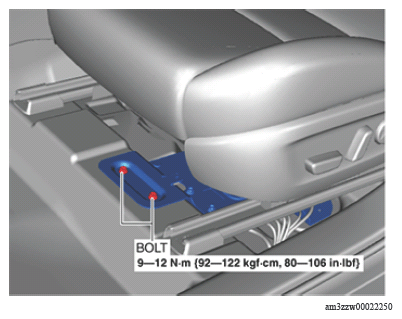

Fig 1: Front Seat (LH) Rearward Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Slide the front seat (LH) forward.
Remove the bolt.

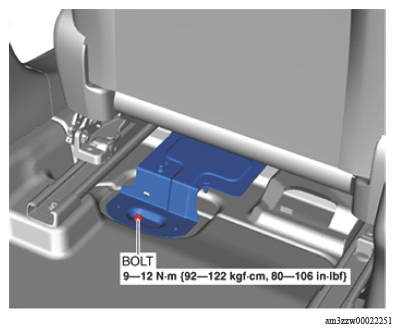

Fig 2: Front Seat (LH) Forward Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [ (US)] .)

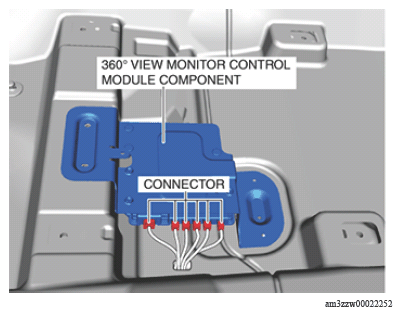

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Remove the 360° view monitor control module component.
Remove the bolts.

Fig 3: Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bracket.
Remove the 360° view monitor control module.
Install in the reverse order of removal.
If the 360° view monitor control module is replaced, perform the following procedure.
1. Complete the 360° view monitor control module automatic configuration using the following procedure.
  1. Switch the ignition ON (engine off or on) and wait for 5 s or more.
  2. Switch the ignition OFF and wait for 5 s or more.
  3. Switch the ignition ON (engine off or on) again and wait for 5 s or more.
2. Clear the DTC. (See CLEARING DTC .)
3. Perform the 360° view monitor system aiming. (See 360° VIEW MONITOR SYSTEM AIMING .)
