Left/right selection switch

Disconnect the negative battery terminal.
Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)

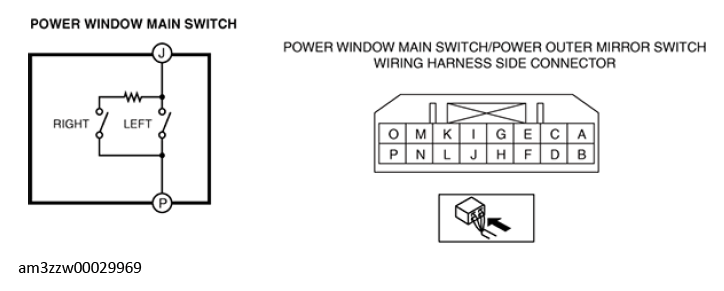

Verify that the resistance between power window main switch terminals J and P is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

RESISTANCE REFERENCE

Switch Position	Resistance (ohm)	Terminal
Left	0	J-P
Right	2090-2310	J-P

If not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
