Fuel Tank Removal/Installation: AWD

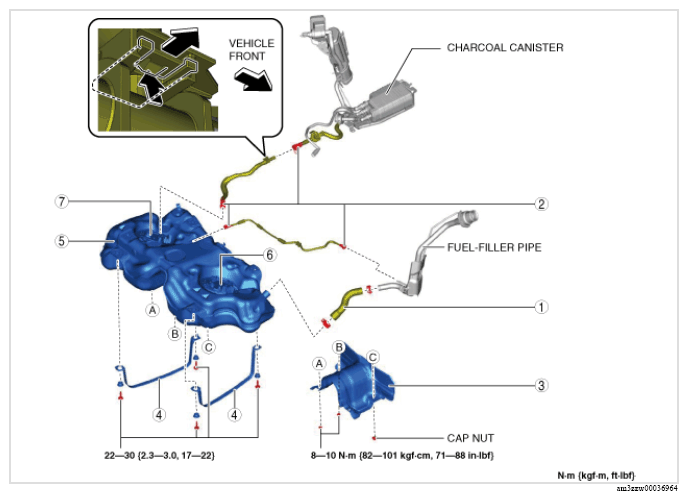

Fig 1: Fuel Tank Components With Torque Specification (AWD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Joint hose (See Joint Hose Installation Note .)
2	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION .)
3	Fuel tank insulator
4	Fuel tank strap
5	Fuel tank (See Fuel Tank Removal Note (AWD) )
6	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
7	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [(US)] .)
