Resistance Inspection: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the boost air temperature sensor. (See BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION .)

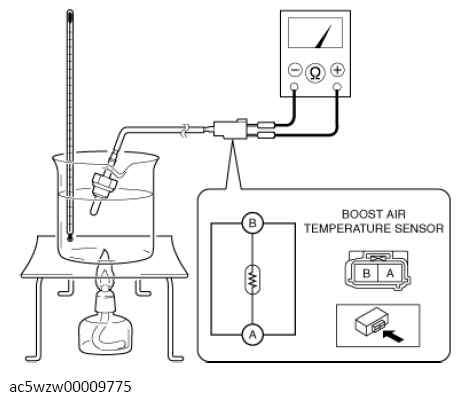

- Place the detection part of the boost air temperature sensor in the water and while gradually increasing the water temperature, measure the resistance between boost air temperature sensor terminals A and B.
- If not as specified, replace the boost air temperature sensor. (See BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
