EGR Pipe Removal/Installation: Notes

Disconnect the negative battery terminal. (See REQUIRED PROCEDURE AFTER NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION .)
Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

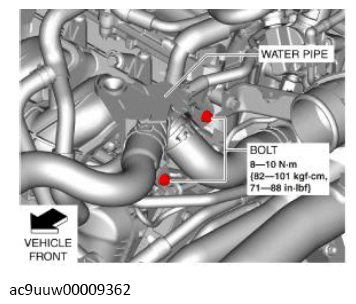

Remove the bolts shown in the figure and set the water pipe aside.

Fig 1: Water Pipe Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

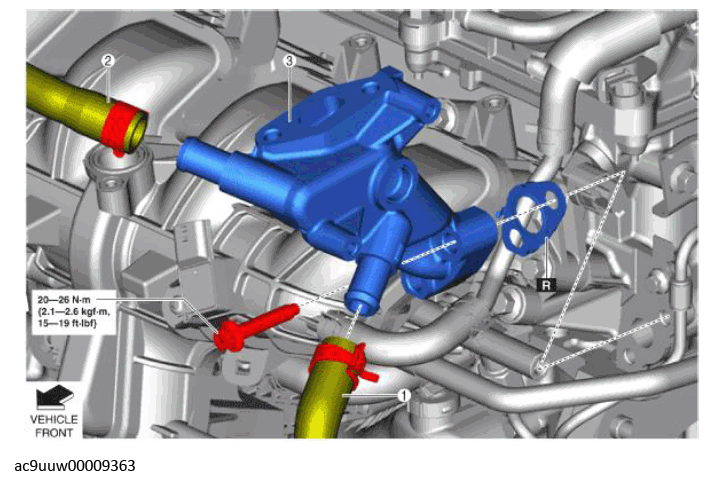

Remove in the order indicated in the table.

Fig 2: EGR Pipe Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Water hose No. 1 (See Water Hose No. 1 Installation Note .)
2	Water hose No. 2 (See Water Hose No. 2 Installation Note .)
3	EGR pipe
