Rear side switch (LR)
- Disconnect the negative battery terminal.
- Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)

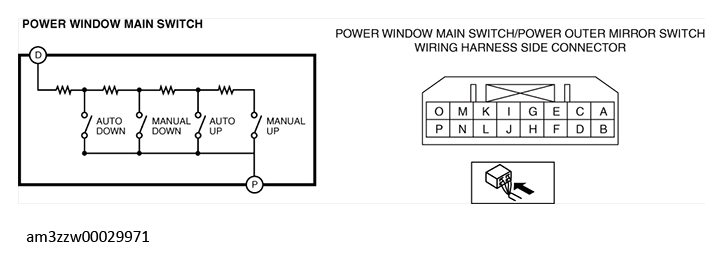

- Verify that the resistance between power window main switch terminals D and P is as indicated in the table.
 Courtesy of MAZDA MOTORS CORP.
|
RESISTANCE REFERENCE
| Switch Position |
Resistance (ohm) |
Terminal |
| Auto Down |
297.0-303.0 |
D-P |
| Manual Down |
445.5-454.5 |
| Auto Up |
683.1-696.9 |
| Manual Up |
1069.2-1090.8 |
