Without coolant control valve

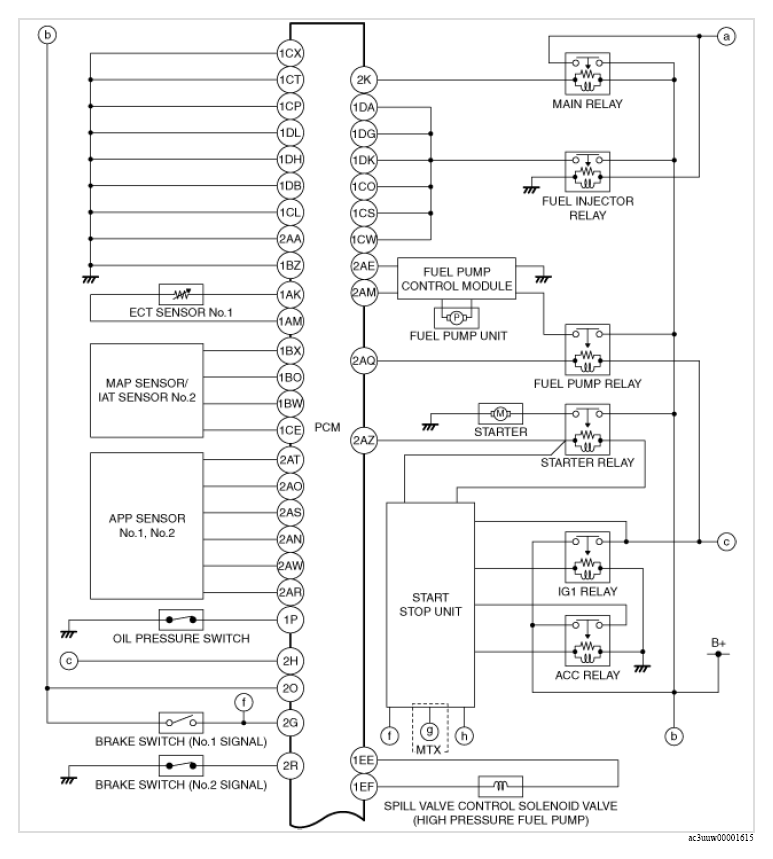

G13149708Courtesy of MAZDA MOTORS CORP.

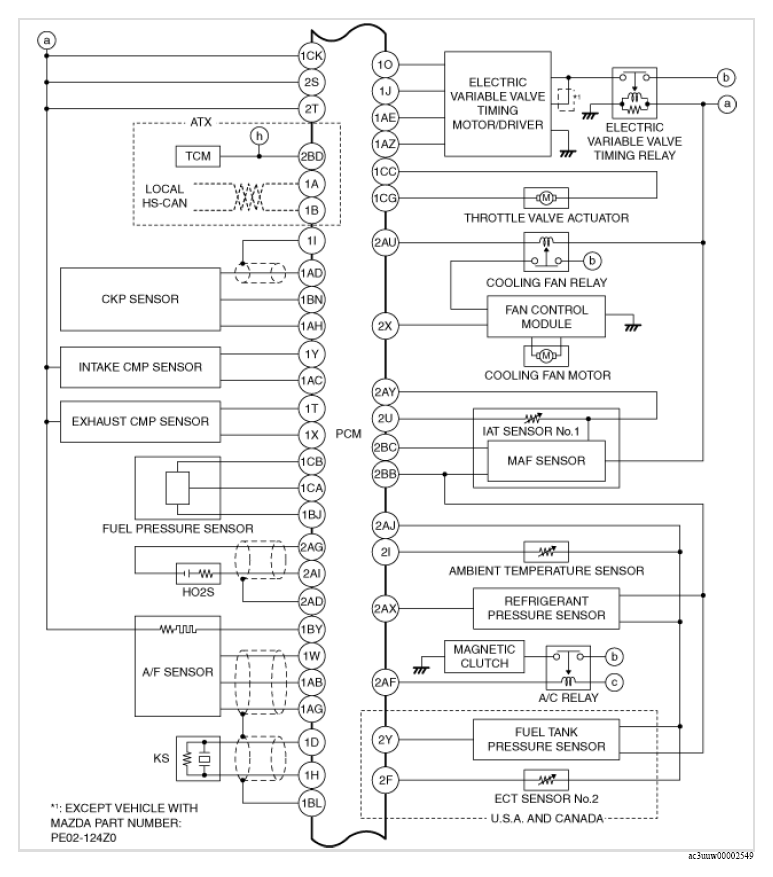

G13149709Courtesy of MAZDA MOTORS CORP.

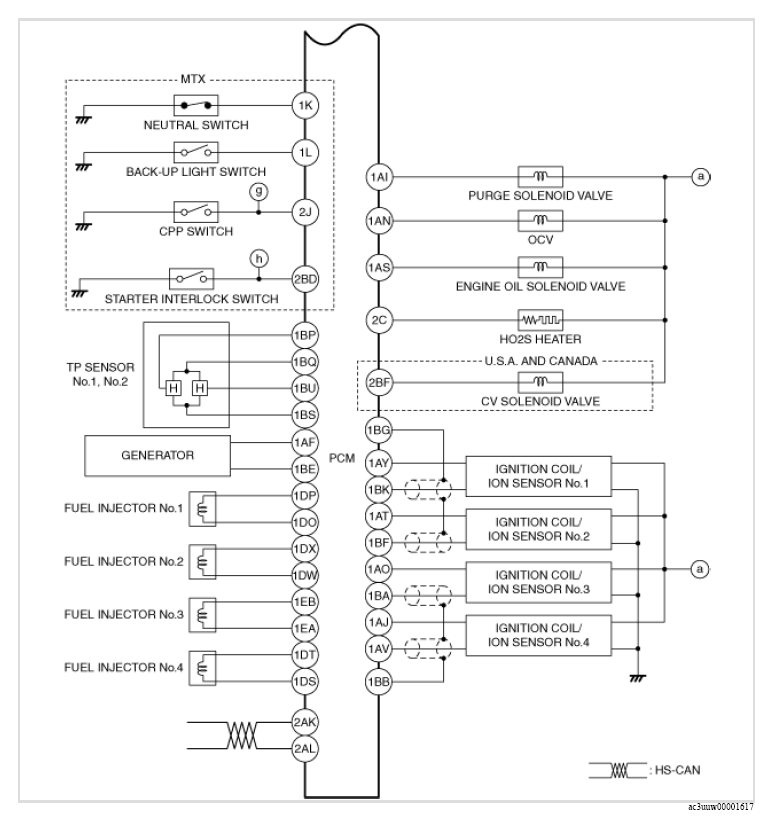

G13149710Courtesy of MAZDA MOTORS CORP.
