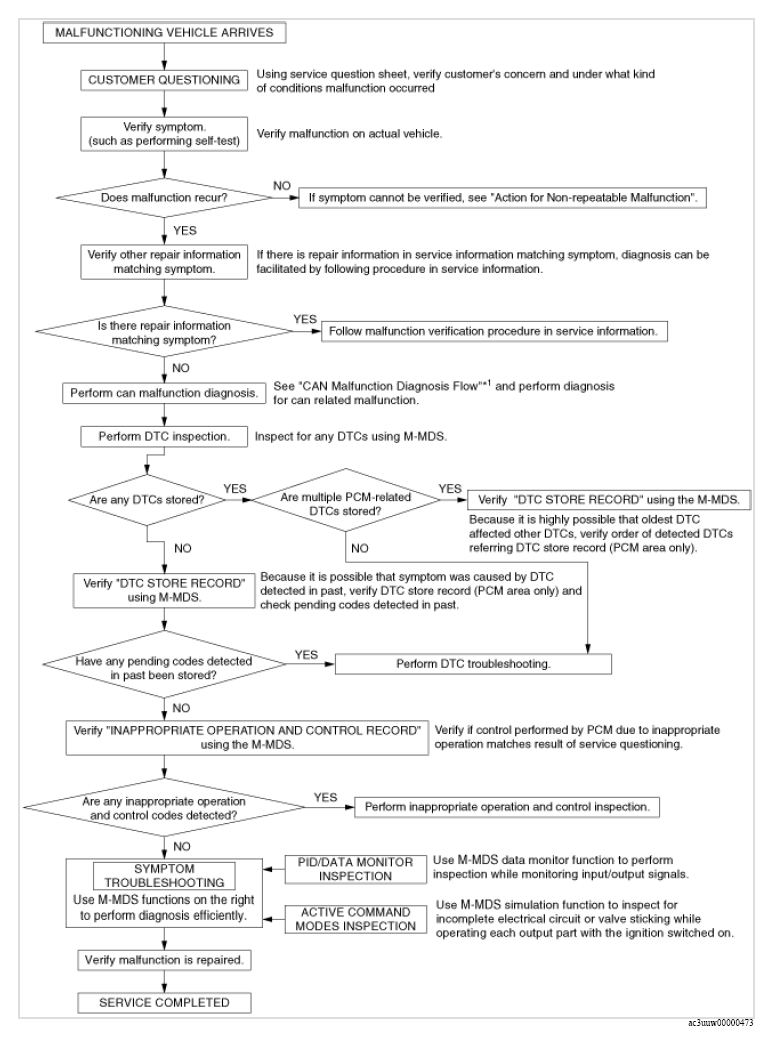

Troubleshooting Procedure
Courtesy of MAZDA MOTORS CORP.
*1:(See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
