Console Lid Lock Removal/Installation

  1. Open the console lid.
    G13560641Courtesy of MAZDA MOTORS CORP.

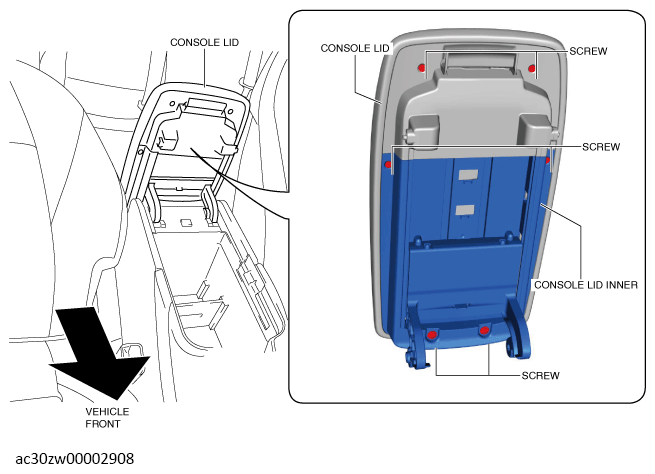

  2. Remove the screws.

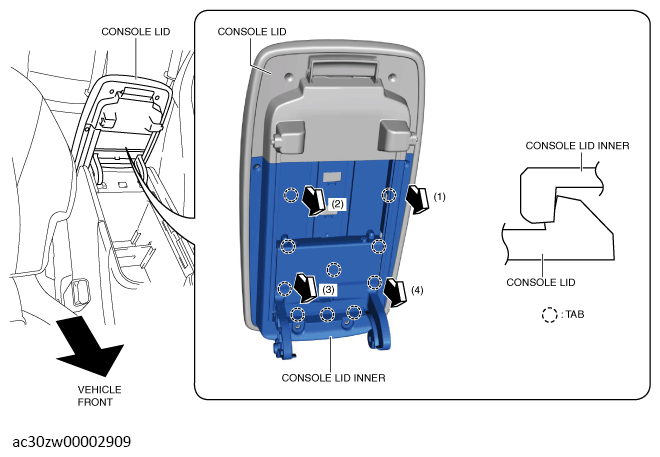

  3. Using a remover tool, move the console lid inner in the order of arrows (1), (2), (3), and (4) shown in the illustration, detach the tabs, and remove the console lid inner.
    G13560642Courtesy of MAZDA MOTORS CORP.

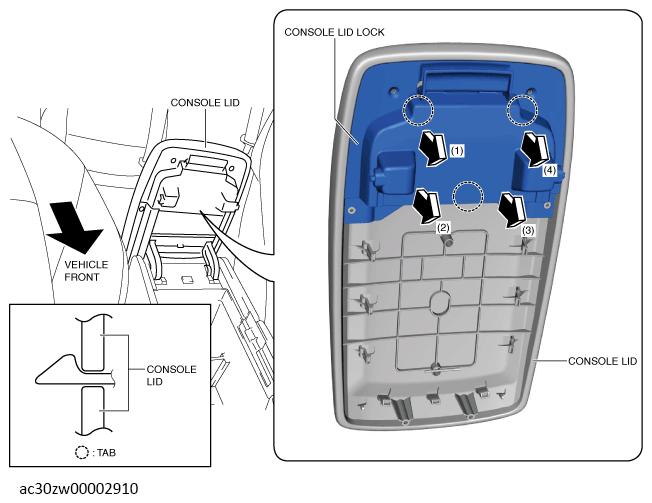

  4. Using a remover tool, move the console lid lock in the order of arrows (1), (2), (3), and (4) shown in the illustration, detach the tabs, and remove the console lid lock.
    G13560643Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
