360° View Monitor Control Module Removal/Installation (Us)

Remove the head restraint.
Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)
Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
Perform the following procedure.
1. Switch the ignition off.
2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the front seat (LH). (See FRONT SEAT REMOVAL/INSTALLATION (US) .)
Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.

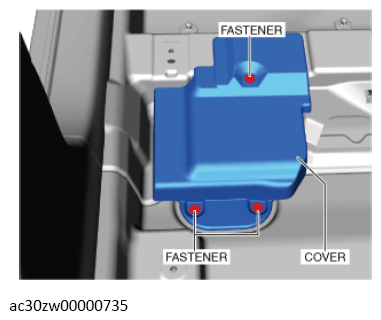

Remove the cover.

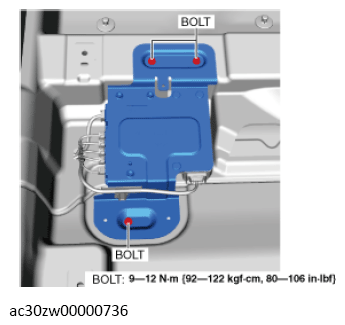

Remove the bolts.

Fig 1: 360° View Monitor Control Module Component Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

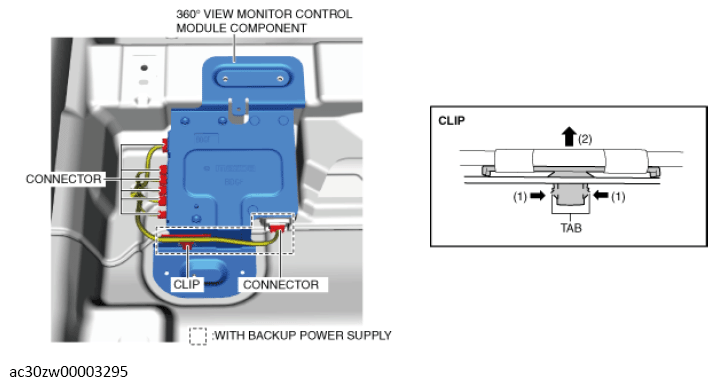

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Remove the clip. (with backup power supply)
Remove the 360° view monitor control module component.

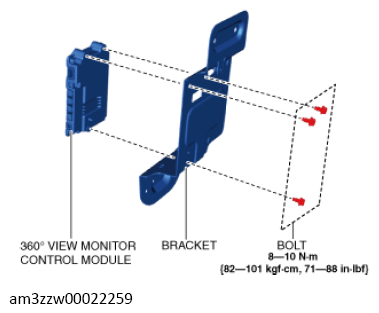

Remove the bolts.

Fig 2: 360° View Monitor Control Module, Bracket And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bracket.
- When replacing the bracket, remove the backup power supply. (with backup power supply) (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION (US) .)
Remove the 360° view monitor control module.
Install in the reverse order of removal.
If the 360° view monitor control module is replaced, perform the following procedure.
1. Switch the ignition ON (engine off) and wait for 5 s or more to complete the global central configuration (GCC) for the 360° view monitor control module.
2. Switch the ignition OFF and wait for 5 s or more.
3. Switch the ignition ON (engine off) again and wait for 5 s or more.
4. Clear the DTC. (See CLEARING DTC .)
5. Perform the 360° view monitor system aiming. (See 360° VIEW MONITOR SYSTEM AIMING .)
