Console Panel Removal Note

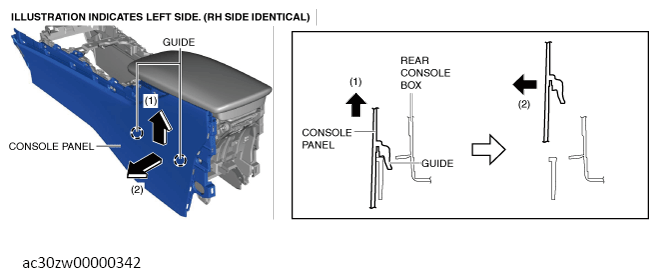

  1. Move the console panel in the order of arrows (1) and (2) shown in the illustration and remove the guides from the rear console box.
    G13560775Courtesy of MAZDA MOTORS CORP.
