Vehicle Status Monitor

• Displays the vehicle status monitor information.

Vehicle Status Monitor verification procedure

1. Select the "Information" button on the Home screen.
2. Select [Vehicle Status Monitor] on the information screen to display the guidance.
   • The buttons on the menu screen operate as follows:

     Item		Explanation
     Vehicle Warning Messages		If there is a problem with the vehicle, information about the problem is displayed.
     Next Service		The next maintenance period is displayed. Date  The date manually set by the customer is displayed. Distance  If "Next Service Date" is set to "Automatic" The "Distance Until Oil Change" content is displayed. If "Next Service Date" is set to "Manual" The traveled distance manually set by the customer is displayed. However, when any of the following conditions is met, the "Distance Until Oil Change" content is displayed. You have not set the traveled distance. "Distance Until Oil Change" is shorter than the traveled distance set by the customer

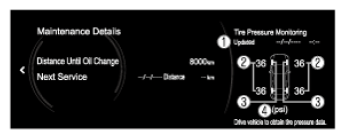

     Maintenance Details	Distance Until Oil Change	The traveled distance until engine oil needs to be replaced is displayed.
     	Next Service	The next maintenance period manually set by the customer is displayed
     	Tire pressure monitor	Courtesy of MAZDA MOTORS CORP.
     		The current tire pressure can be checked. When tire pressures were last modified Air pressure of each tire Condition of each tire When air pressure is low: Yellow color When air pressure is correct: Blue color When air pressure cannot be monitored: Black color Tire pressure units
     Vehicle Maintenance Settings	Next Service Date	The method of setting the next maintenance can be selected from the following. Automatic Manual
     	Set Next Service Date	If "Next Service Date" is set to "Manual", the next maintenance date can be set.
     	Set Next Service Distance	If "Next Service Date" is set to "Manual", the traveled distance until the next maintenance period can be set.
     	Reset Oil Change Distance	The "Distance Until Oil Change" content can be reset. After replacing the engine oil, perform the reset (engine oil data resetting) of the recorded value in this item.
