Rear Inner Handle

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

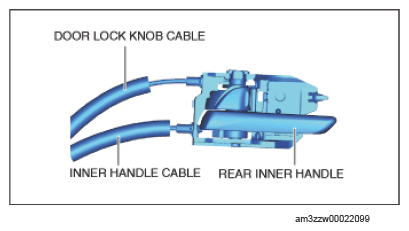

  4. Disconnect the door lock knob cable and the inner handle cable from the rear inner handle.
    G14583561Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
