Brake Pipe Installation Note

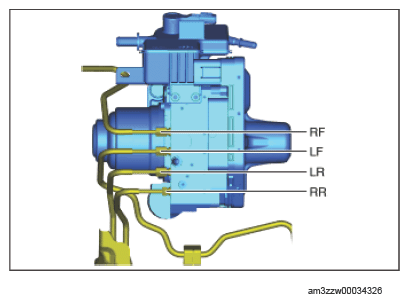

  1. Align the marks made before removal and install the brake pipe to the electronically controlled brake unit and brake pipe joint referring to the figure.
    G14581014Courtesy of MAZDA MOTORS CORP.
  2. Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.
