Fuel Pump Unit Disassembly/Assembly: 2WD

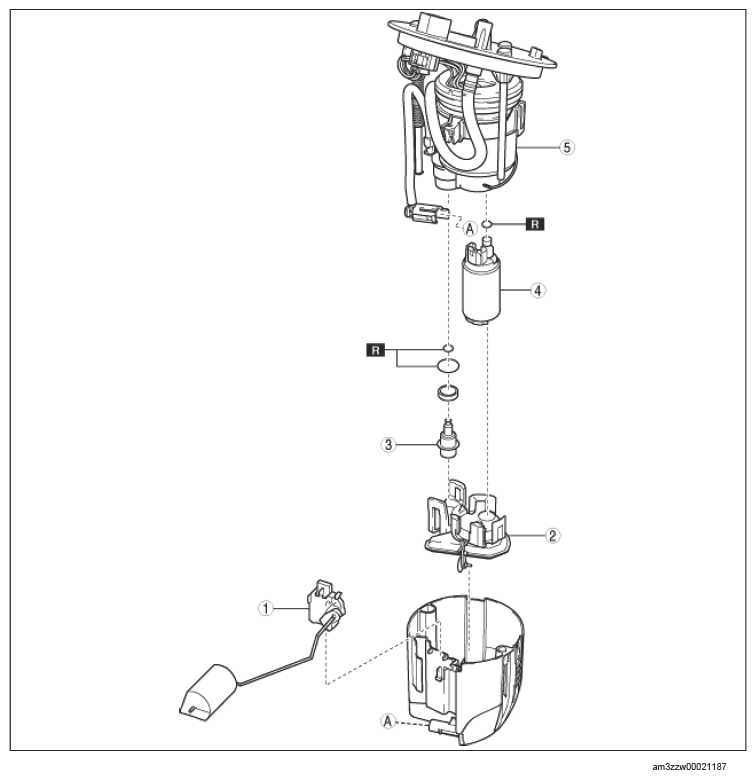

G14579184Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Fuel gauge sender unit
2 Fuel filter (low-pressure)
3 Pressure regulator
4 Fuel pump
5 Fuel filter (high-pressure)
