Condenser Removal/Installation: Sedan-4SD

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    4. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    5. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    6. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)

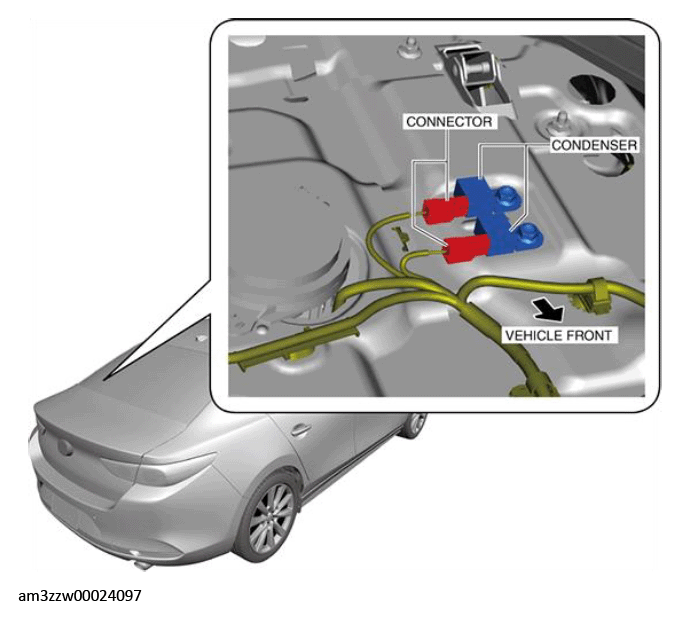

  3. Disconnect the connectors.
    G13179809Courtesy of MAZDA MOTORS CORP.

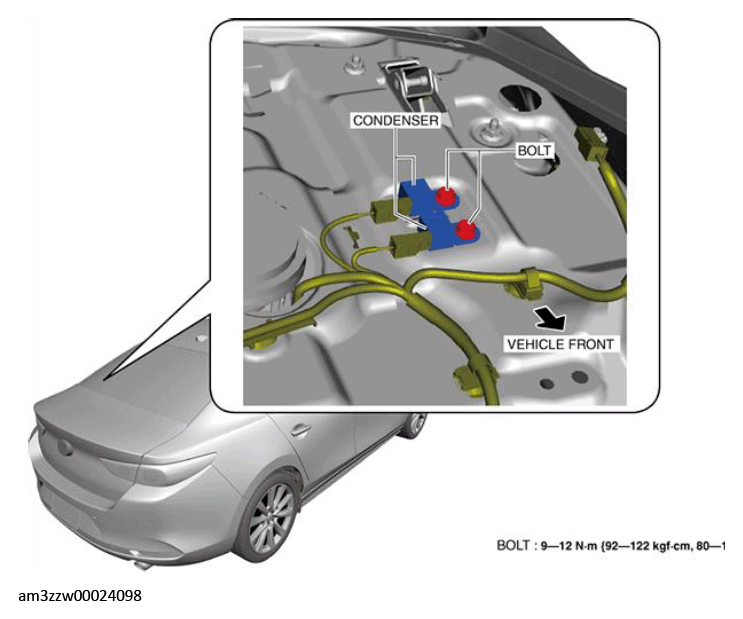

  4. Remove the bolts.
    Fig 1: Condensers Bolts With Torque Specification
    G13179810Courtesy of MAZDA MOTORS CORP.
  5. Remove the condensers.
  6. Install in the reverse order of removal.
