Connectivity Master Unit (CMU) Disassembly/Assembly

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

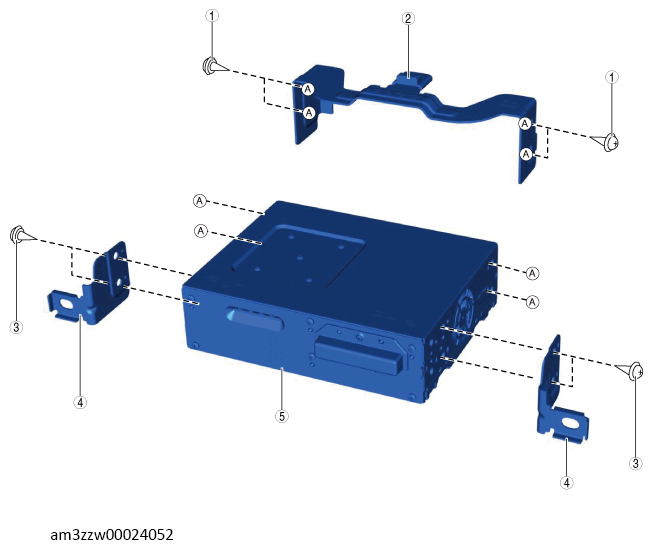

Disassemble in the order indicated in the table.

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Screw
2	Bracket A
3	Screw
4	Bracket B
5	CMU

Assemble in the reverse order of disassembly.
