Assist Handle Removal/Installation: Installation
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

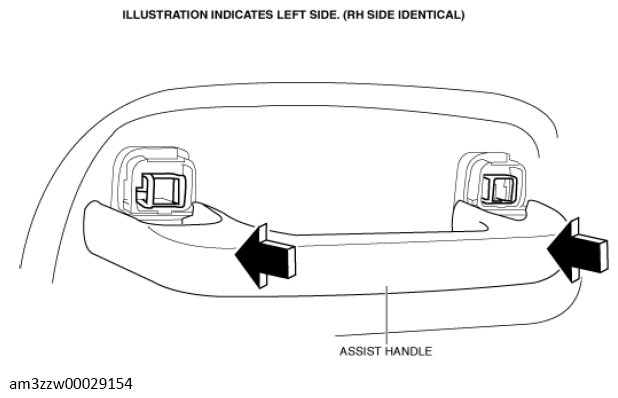

- Push the assist handle in the direction of the arrows shown in the figure and insert it into the assist handle brackets.
 Courtesy of MAZDA MOTORS CORP.
|

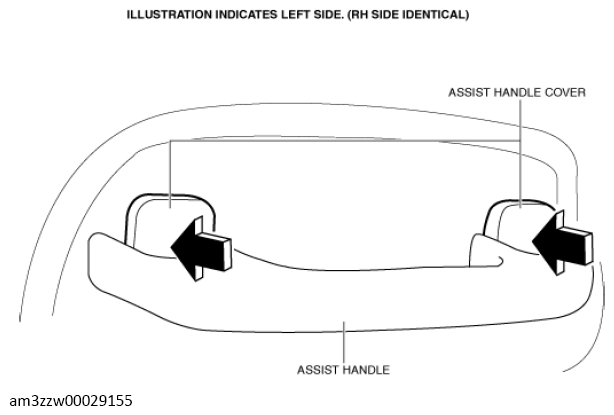

- Push the assist handle covers in the direction of the arrows shown in the figure to install the assist handle.
 Courtesy of MAZDA MOTORS CORP.
|
