Ambient Temperature Sensor Removal/Installation (Auto A/C)
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the following parts:
- Upper face (See UPPER FACE REMOVAL/INSTALLATION (US) .)
- Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
- Disconnect the connector.

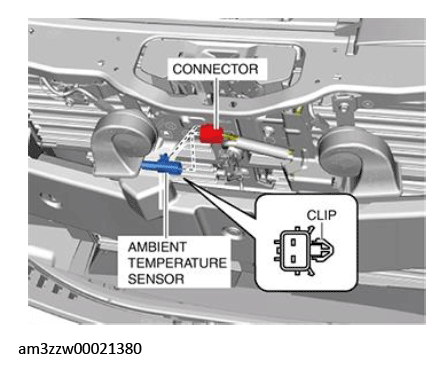

- Detach the clip and remove the ambient temperature sensor.
- Install in the reverse order of removal.
- Perform the 360°view monitor system aiming. (With 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
- Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
- Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
