Back-Up Light Switch Inspection
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the back-up light switch.

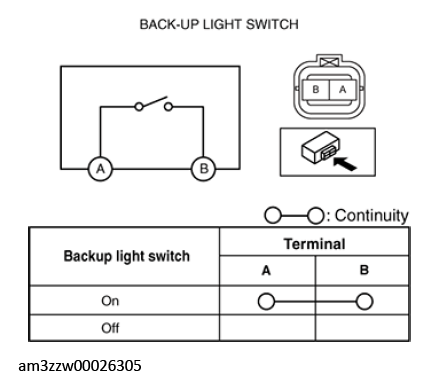

- Verify that the continuity between the back-up light switch terminals is as indicated in the table.
- If not as indicated in the table, replace the back-up light switch. (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION [C66M-R] .)
