Rear Combination Light Removal/Installation: Sedan-4SD

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION (US) .)

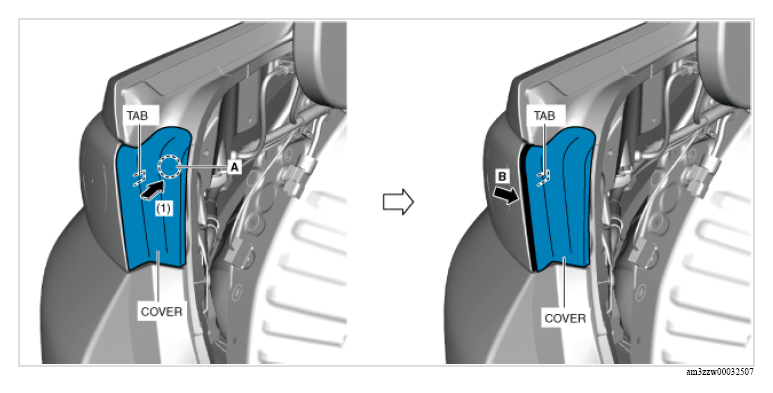

Detach the tab inside the cover by pressing area A of the cover in the direction of arrow (1) and creating a gap in area B.

Courtesy of MAZDA MOTORS CORP.

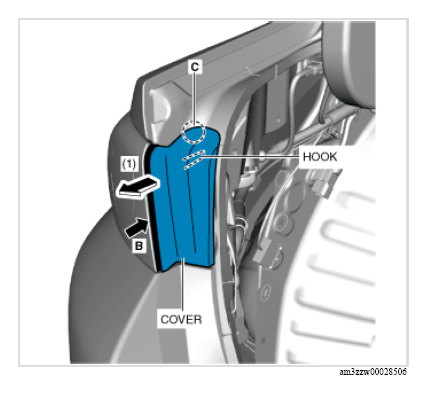

Hold area C, pull it in the direction of arrow (1), and then detach the hook while maintaining the condition in Step 4.

Courtesy of MAZDA MOTORS CORP.
Remove the cover.
Disconnect the connectors.

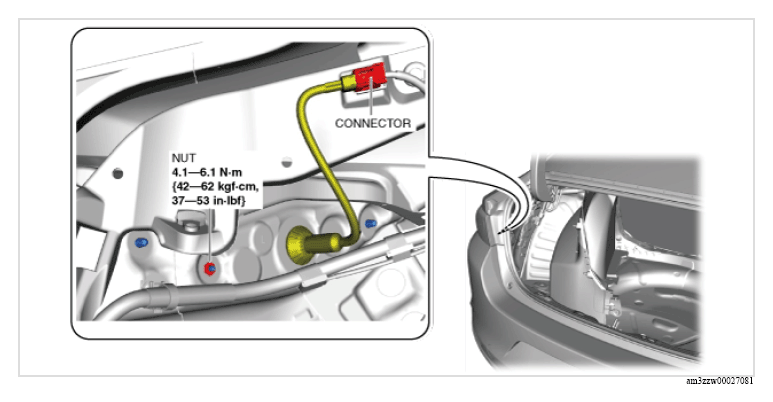

Fig 1: Rear Combination Light Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the nut.
CAUTION:
- When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.

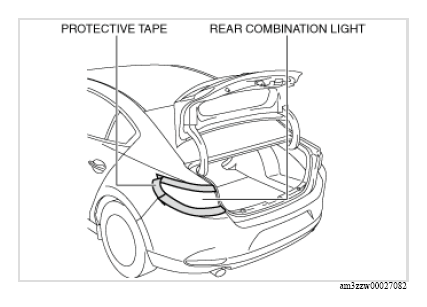

To prevent scratches or damage, affix protective tape to the position shown in the figure.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When removing the rear combination light from the body, the grommet could fall off and become lost. When removing the rear combination light from the body, verify that the grommet remains in the body.

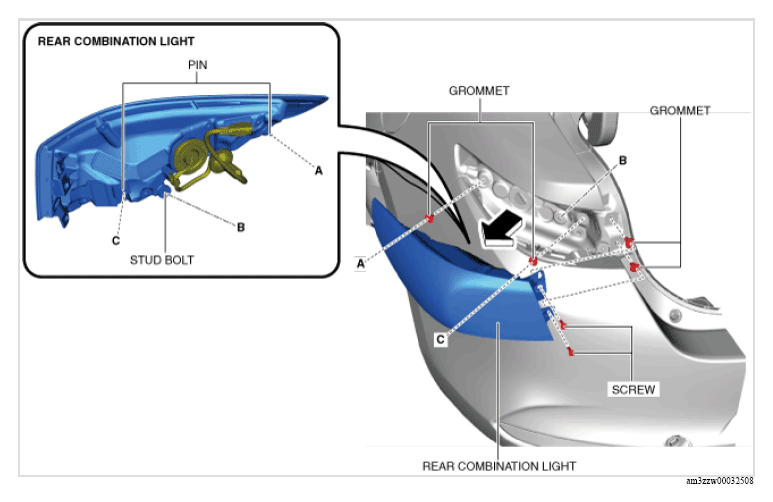

Remove the screws.
Remove the rear combination light in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
