Side Turn Light Inspection
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION .)
- Apply battery voltage to side turn light terminal A, and connect terminal B to ground.
- Verify that the LED illuminates.
- If the LED illuminates, go to the next step.
- If the LED does not illuminate, replace the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION .)
- Remove the power outer mirror connector. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

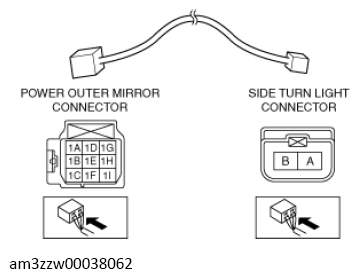

- Verify that the continuity between side turn light terminal and power outer mirror terminal is as indicated in the table.
- If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
