Trunk Compartment Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

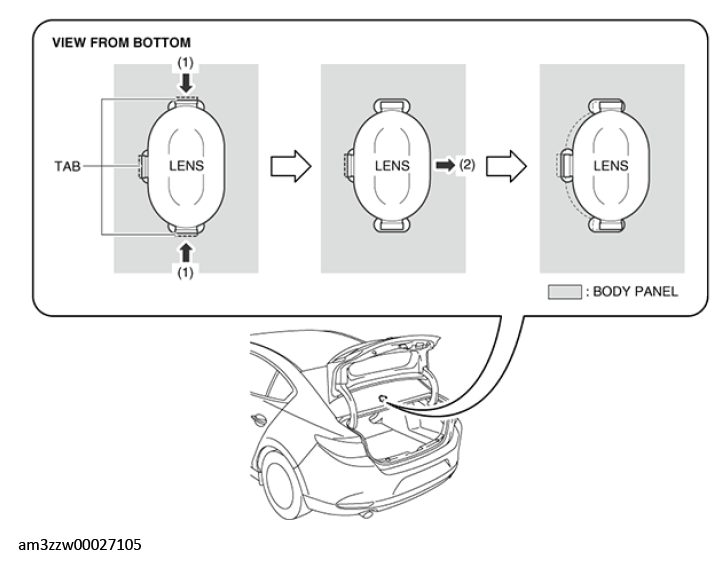

  2. While pressing the lens in the direction of arrows (1) shown in the figure, move the lens in the direction of arrow (2) to detach the lens tabs from the body panel.
    G13179662Courtesy of MAZDA MOTORS CORP.

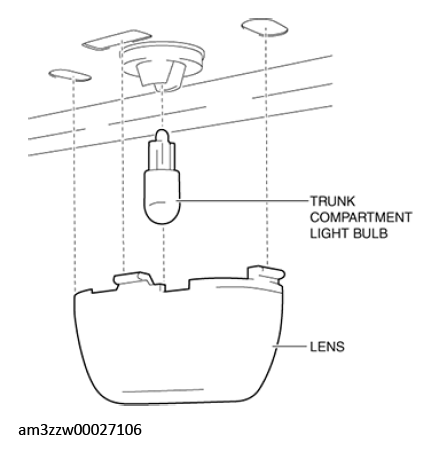

  3. Remove the lens.
    G13179663Courtesy of MAZDA MOTORS CORP.
  4. Remove the trunk compartment light bulb.
  5. Install in the reverse order of removal.
