Quick Diagnostic Chart

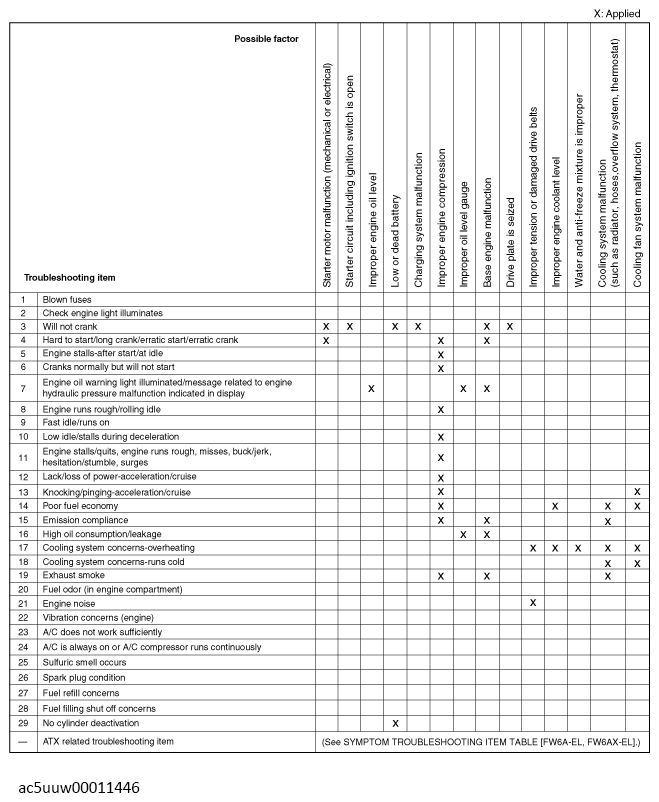

G13671544

Courtesy of MAZDA MOTORS CORP.

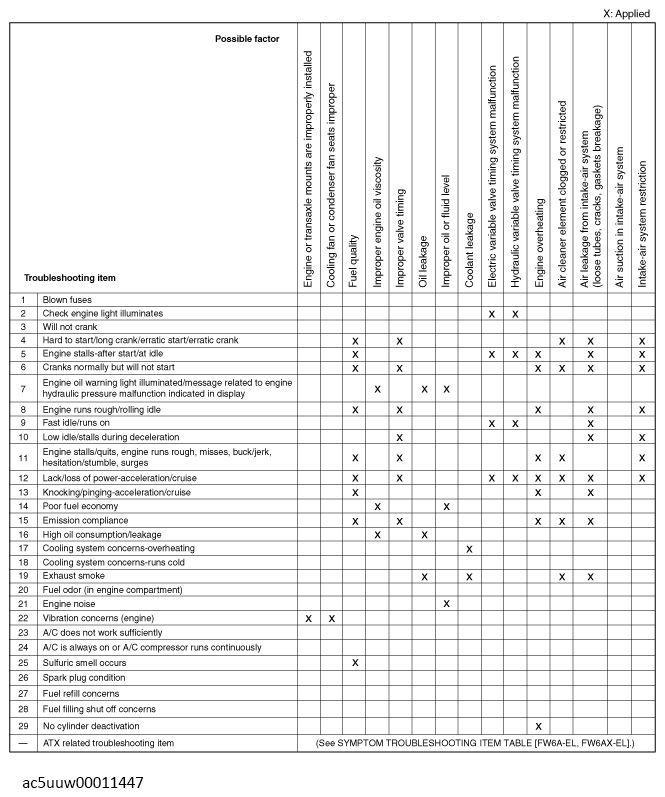

G13671545

Courtesy of MAZDA MOTORS CORP.

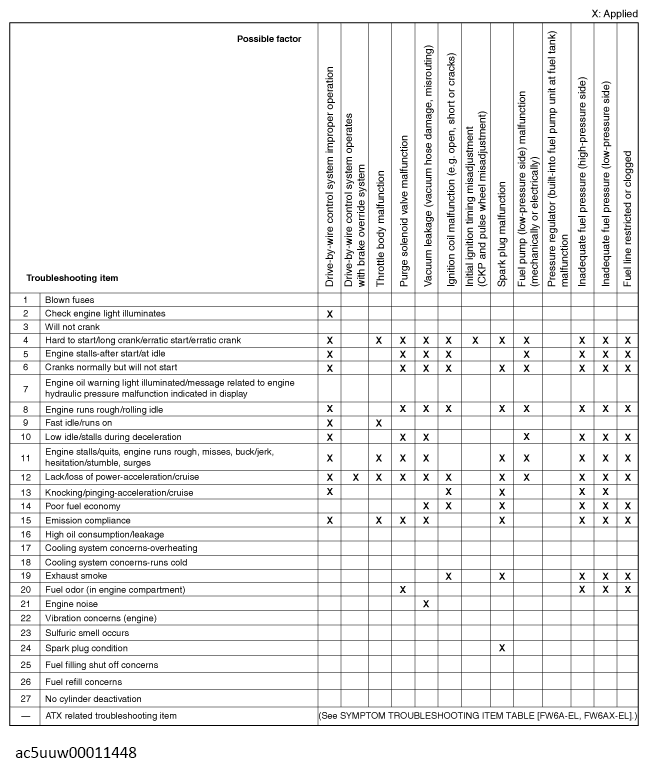

G14464549

Courtesy of MAZDA MOTORS CORP.

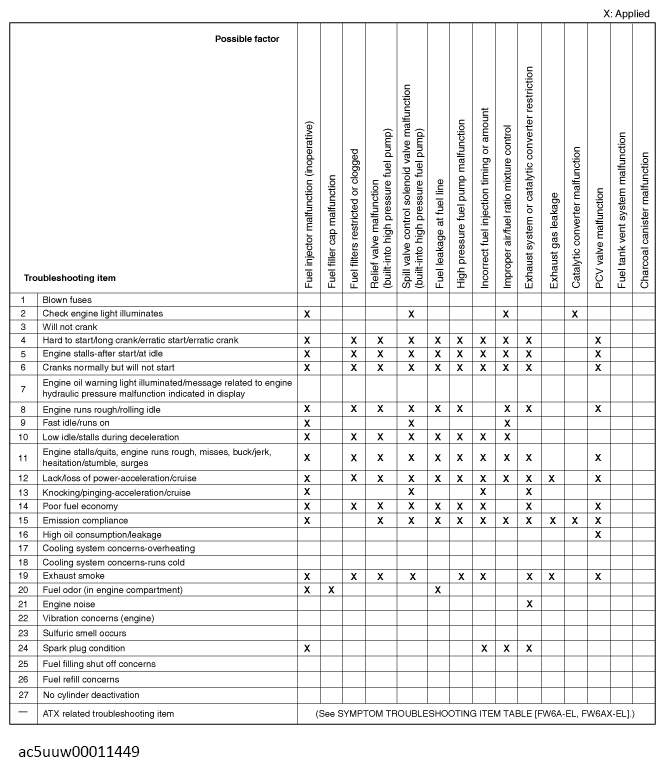

G14464550

Courtesy of MAZDA MOTORS CORP.

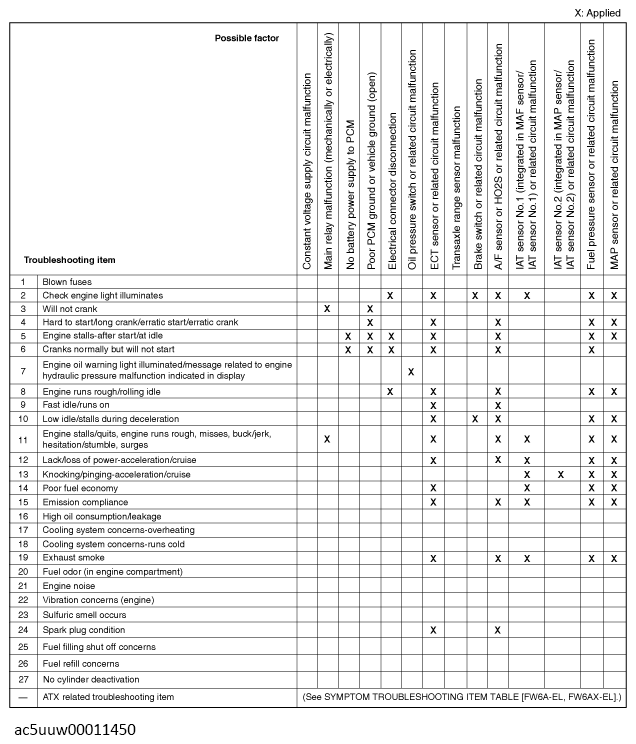

G14464551

Courtesy of MAZDA MOTORS CORP.

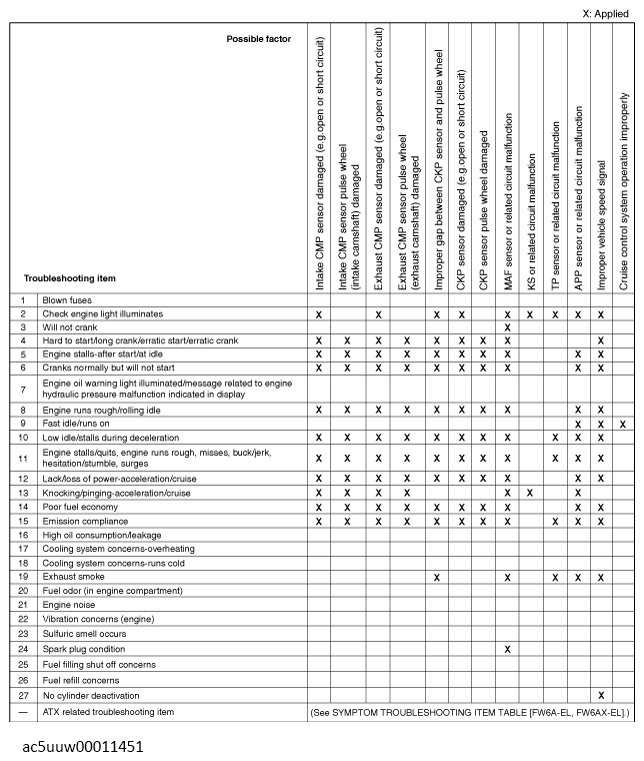

G14464552

Courtesy of MAZDA MOTORS CORP.

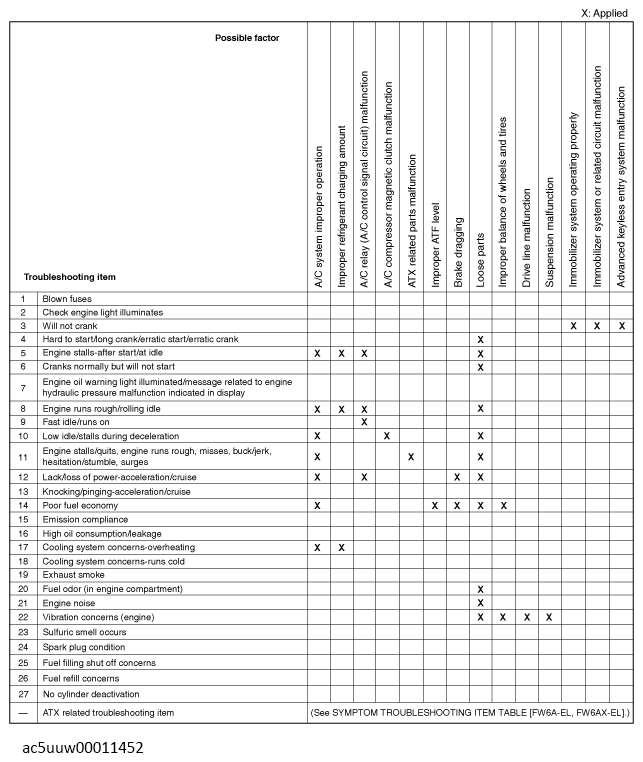

G14464553

Courtesy of MAZDA MOTORS CORP.

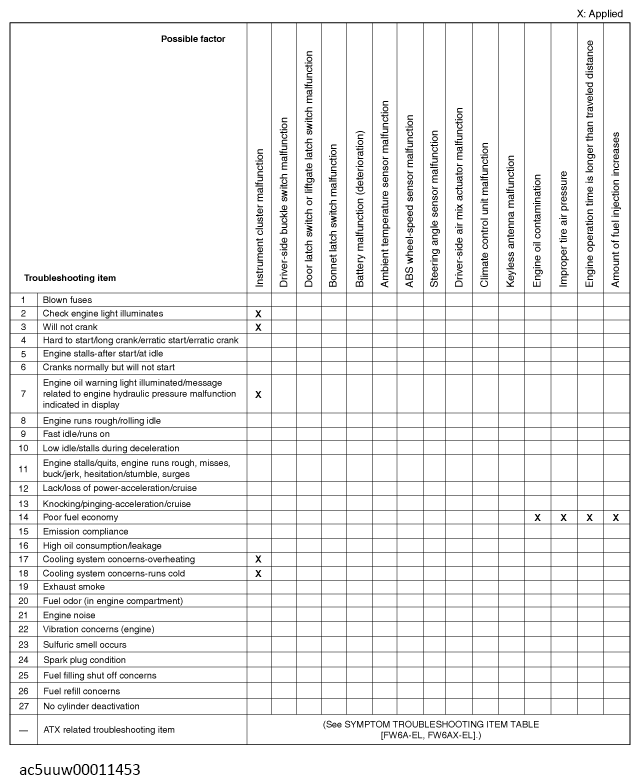

G14464554

Courtesy of MAZDA MOTORS CORP.

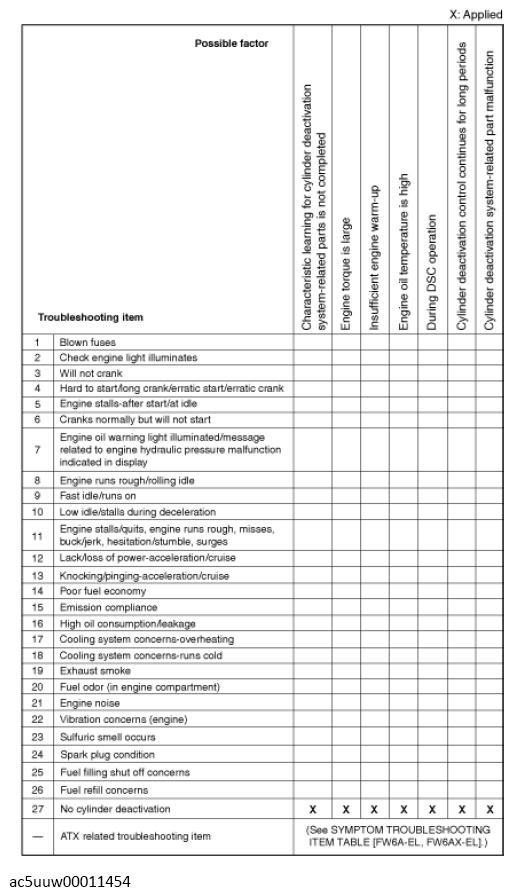

G14464555

Courtesy of MAZDA MOTORS CORP.
