Front Door Module Panel Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    2. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    NOTE:
    • After removing the front door trim, secure the inner handle using screws so that the procedure is performed smoothly.
  4. Disconnect the connectors.

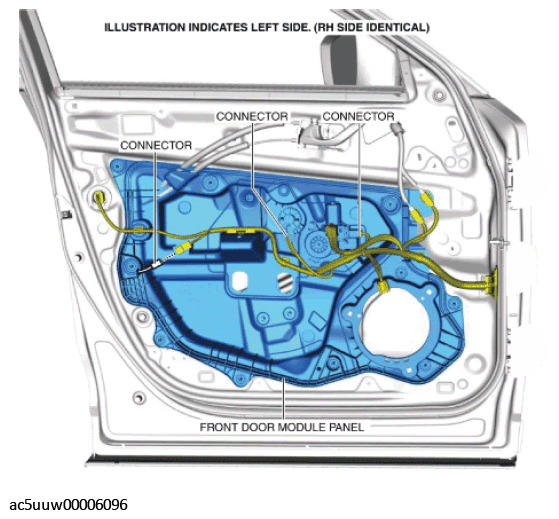

    Fig 1: Disconnecting Front Door Module Panel Connectors
    G11425925Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.

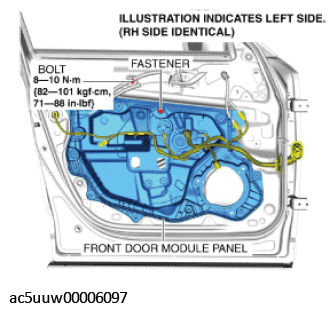

    Fig 2: Front Door Module Panel Bolt With Torque Specifications
    G11425926Courtesy of MAZDA MOTORS CORP.
  6. Remove the fastener.
  7. Remove the screws.

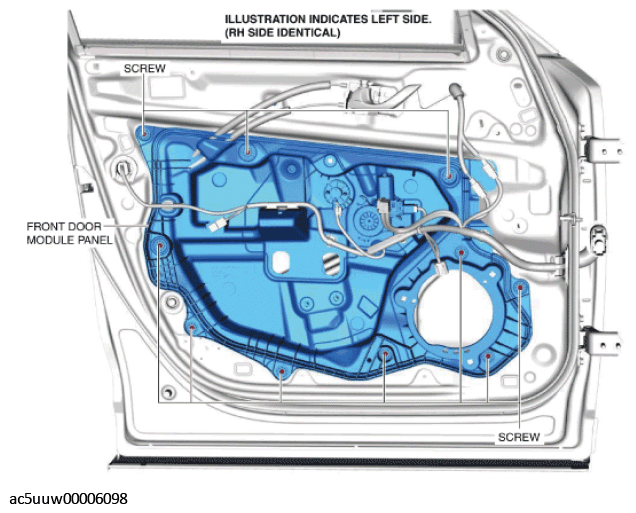

    Fig 3: Removing Front Door Module Panel Screws
    G11425927Courtesy of MAZDA MOTORS CORP.
  8. Move the front door module panel in the direction of the arrow shown in the figure and remove the pin from the front door inner panel.
    CAUTION:
    • If the protector does not come out easily from the front door inner panel, pulling the front door module panel forcibly may cause the front door module panel to deform. If the protector does not come out easily, remove the front door module panel while gradually removing the adhered protector.
    • If the front power window regulator contacts the front door inner panel during the front door module panel removal, the coating film on the front door inner panel may get scratched, or the front door module panel and front power window regulator could be damaged. Remove the front door module panel while verifying that the front power window regulator and the front door inner panel do not contact each other.

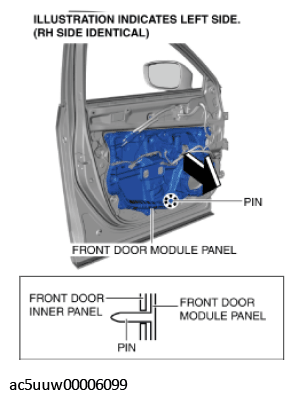

    Fig 4: Removing Pin From Front Door Inner Panel
    G11425928Courtesy of MAZDA MOTORS CORP.
  9. Remove the wiring harness clips.

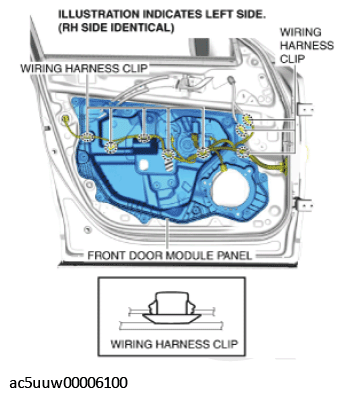

    Fig 5: Removing Wiring Harness Clips
    G11425929Courtesy of MAZDA MOTORS CORP.
  10. Move the front door module panel in the direction of the arrow shown in the figure so that the upper part of the front power window regulator does not contact the front door inner panel, and remove the front door module panel and the front power window regulator as a single unit.

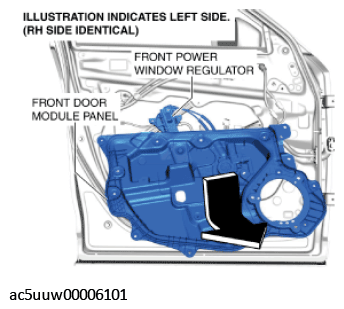

    Fig 6: Moving Front Door Module Panel
    G11425930Courtesy of MAZDA MOTORS CORP.
  11. Remove the front power window motor. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
  12. Remove the front power window regulator. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
  13. Install in the reverse order of removal.
