Steering Gear And Linkage Assembly: Notes

CAUTION:

To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

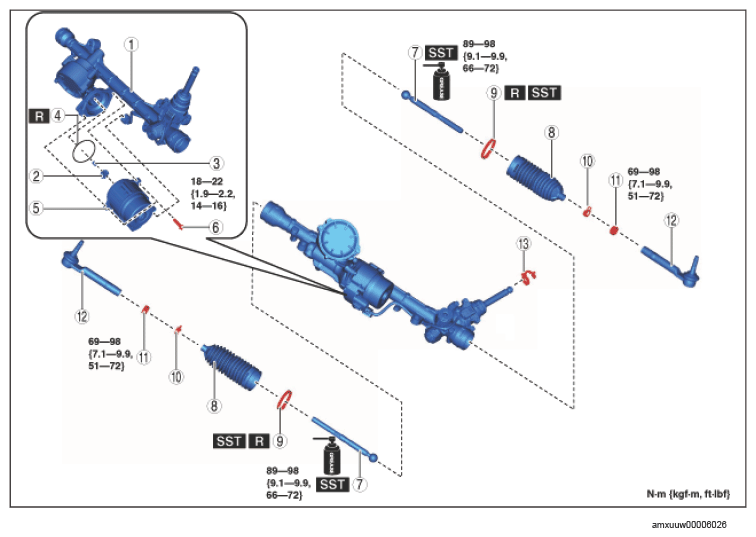

Fig 1: Steering Gear And Linkage Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component no.	Refer to
1	Steering gear
2	Rubber (See RUBBER, SPACER AND EPS Control Module ASSEMBLY NOTE .)
3	Spacer (See RUBBER, SPACER AND EPS Control Module ASSEMBLY NOTE .)
4	O-ring
5	EPS Control Module (See RUBBER, SPACER AND EPS CONTROL MODULE ASSEMBLY NOTE .)
6	Bolt
7	Tie rod (See TIE ROD ASSEMBLY NOTE .)
8	Boot
9	Boot band (See BOOT BAND ASSEMBLY NOTE .)
10	Boot clamp
11	Locknut
12	Tie-rod end (See TIE-ROD END ASSEMBLY NOTE .)
13	Clip
