Joint Hose Installation Note

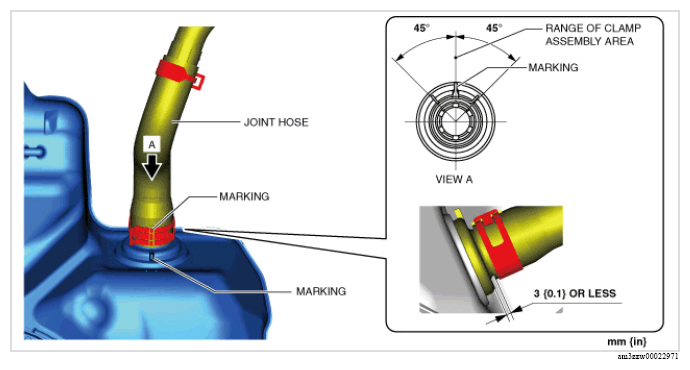

Align the joint hose marking with the pipe marking as shown in the figure below and assemble.
Fuel tank side

Courtesy of MAZDA MOTORS CORP.
Align the joint hose marking with the fuel-filler pipe marking as shown in the figure below and assemble.
Fuel-filler pipe side

Courtesy of MAZDA MOTORS CORP.
