Quick Diagnostic Chart

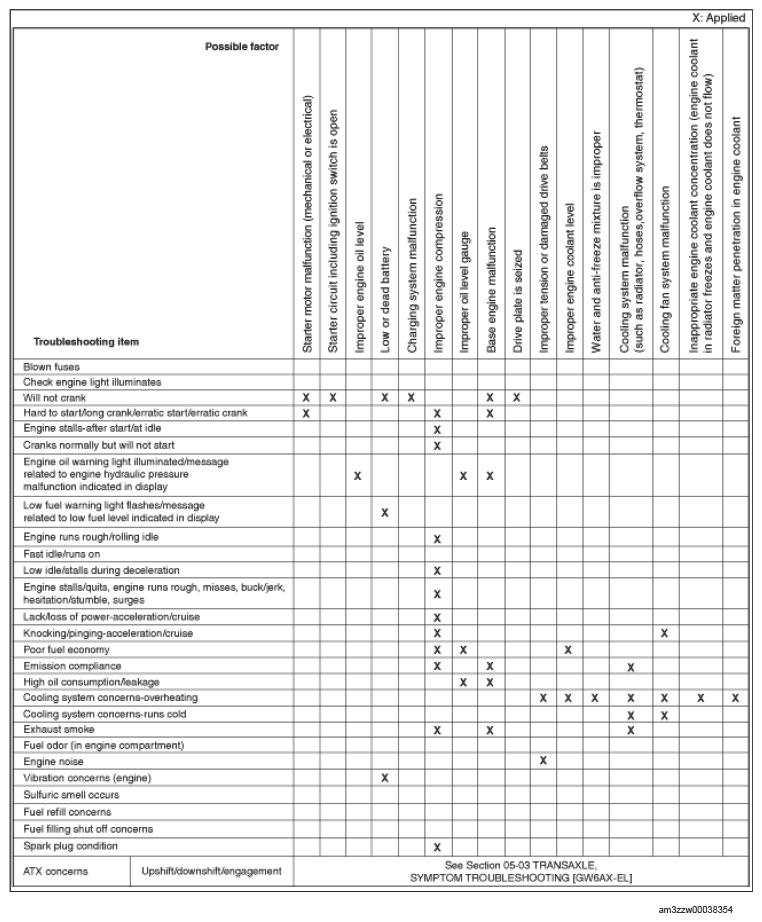

G14575227

Courtesy of MAZDA MOTORS CORP.

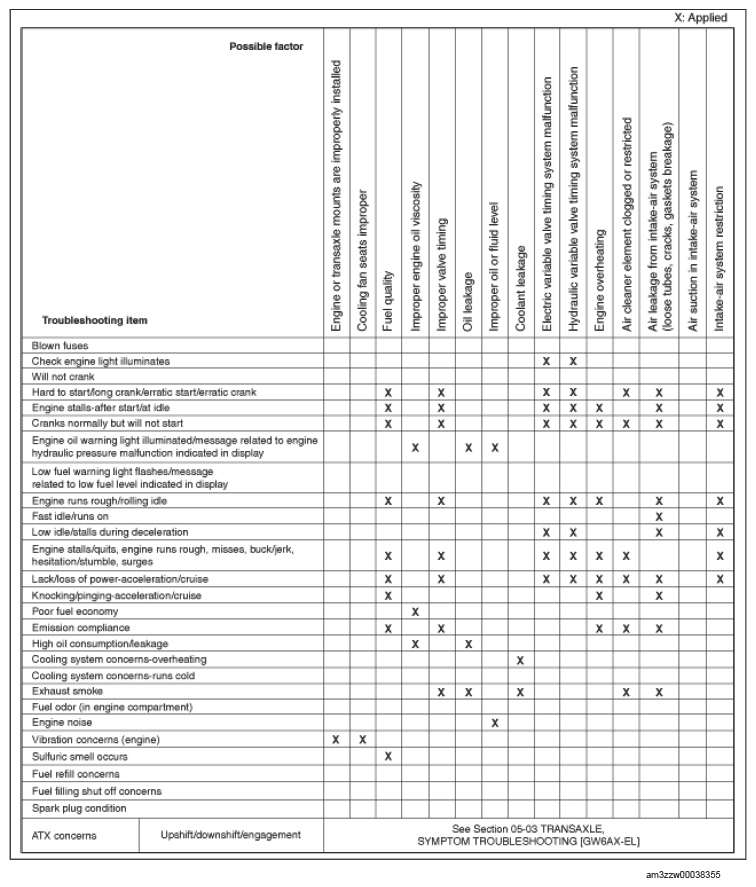

G14575228

Courtesy of MAZDA MOTORS CORP.

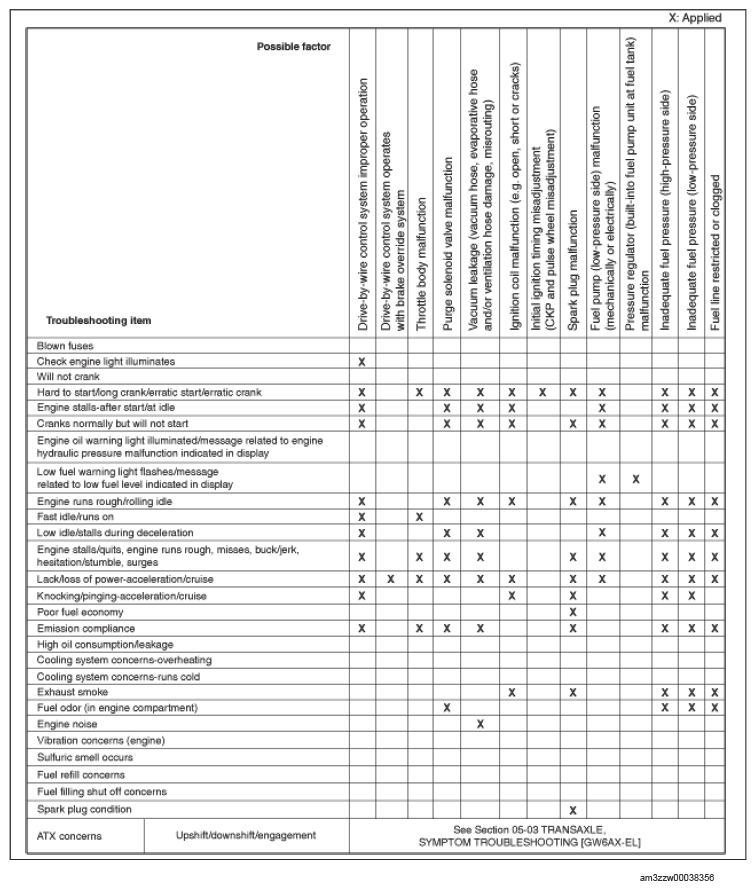

G14575229

Courtesy of MAZDA MOTORS CORP.

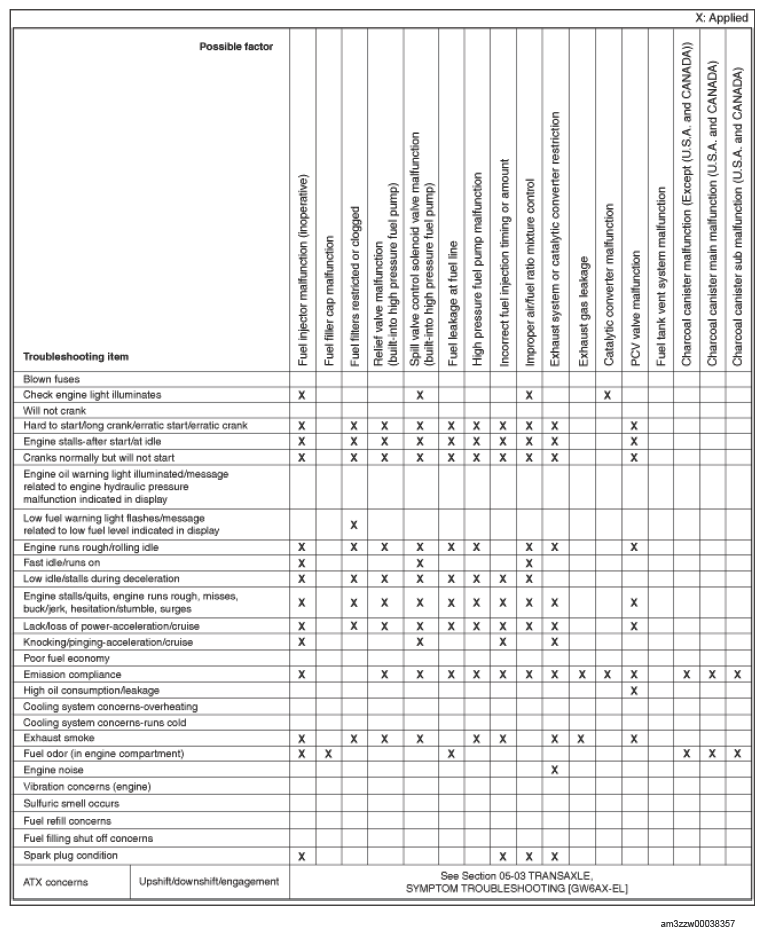

G14575230

Courtesy of MAZDA MOTORS CORP.

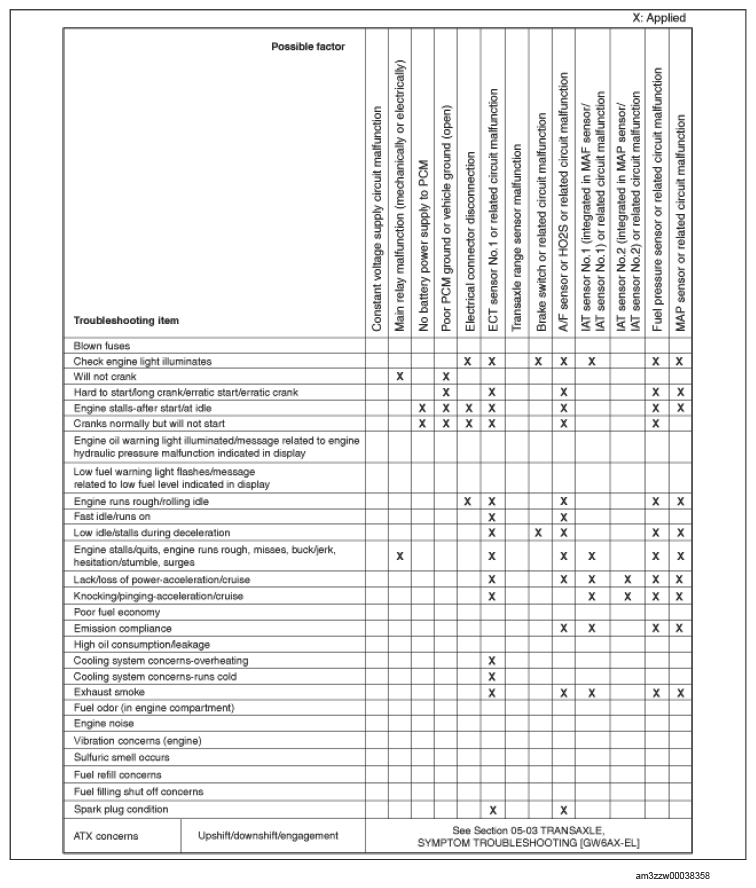

G14575231

Courtesy of MAZDA MOTORS CORP.

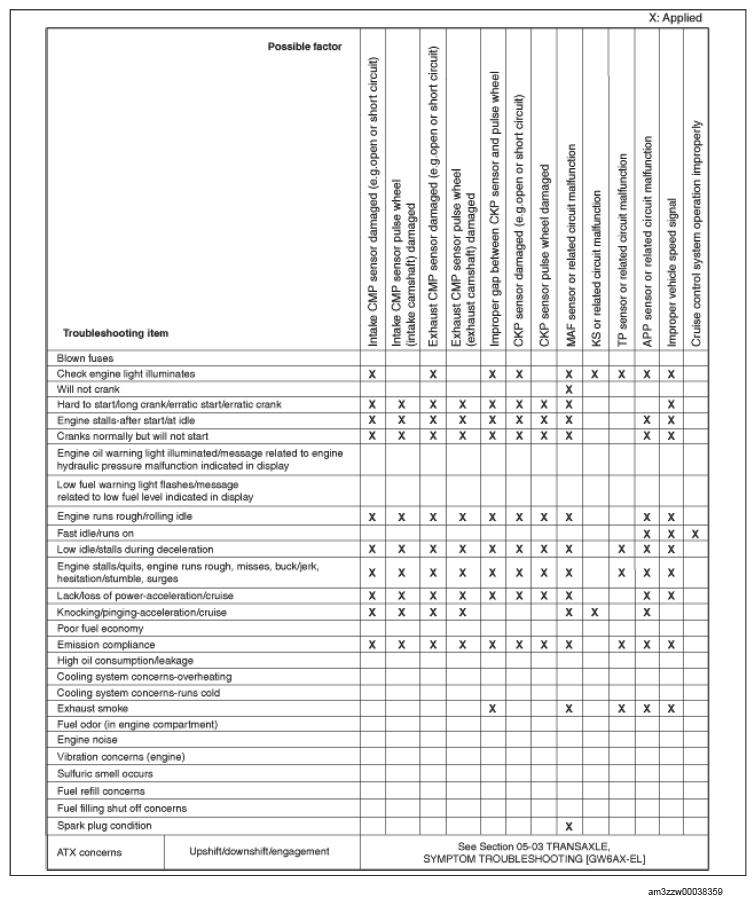

G14575232

Courtesy of MAZDA MOTORS CORP.

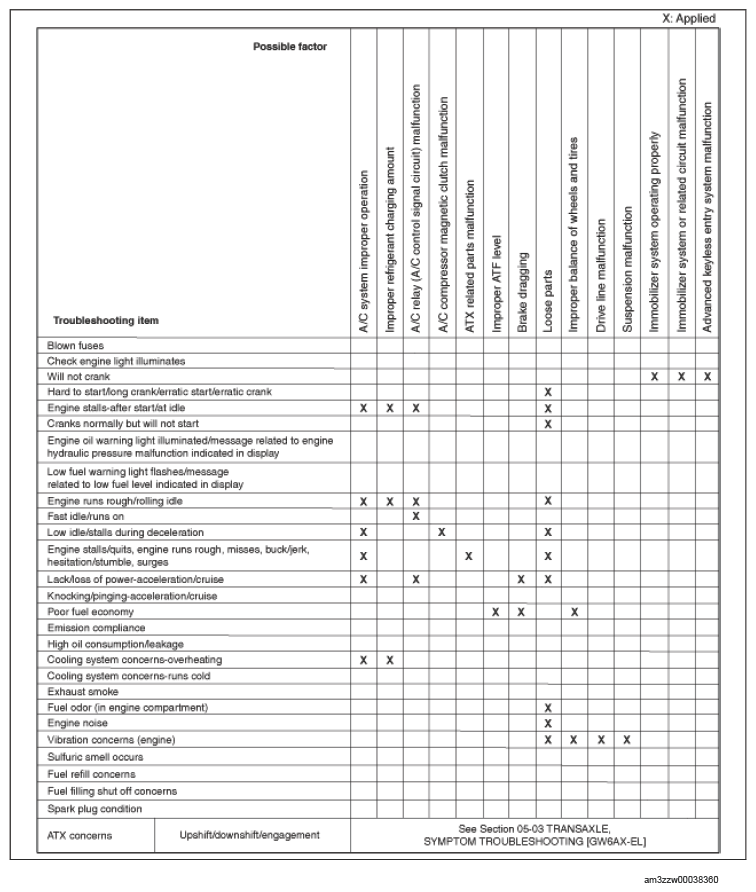

G14575233

Courtesy of MAZDA MOTORS CORP.

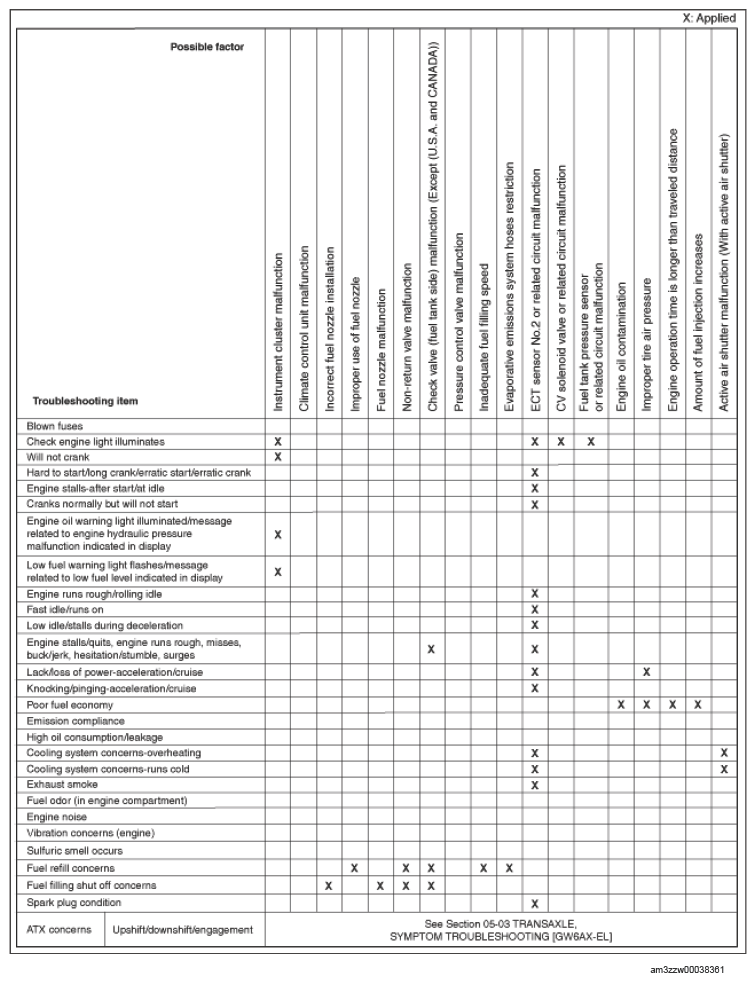

G14575234

Courtesy of MAZDA MOTORS CORP.

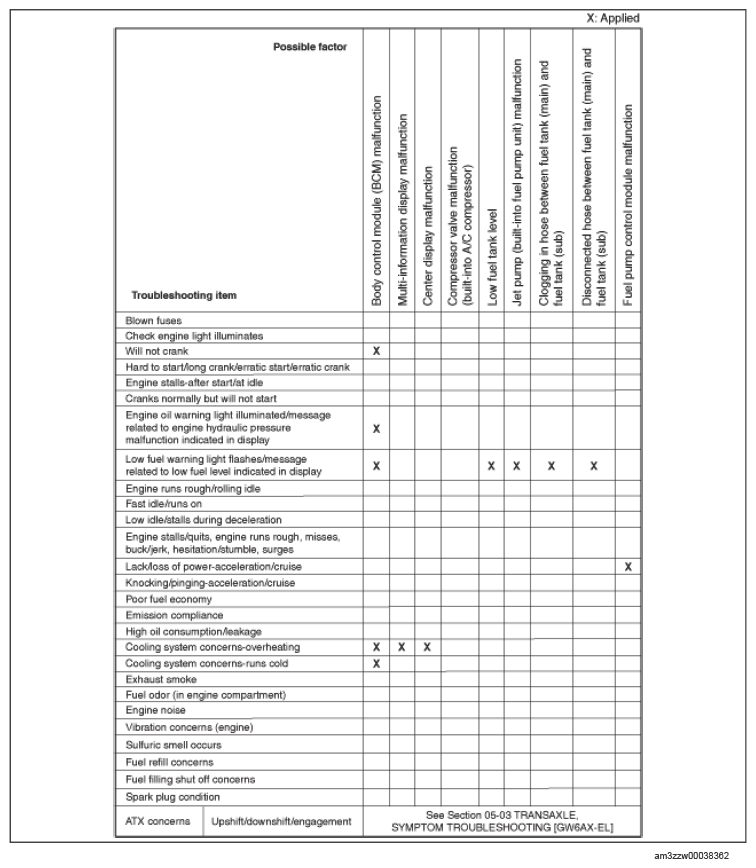

G14575235

Courtesy of MAZDA MOTORS CORP.

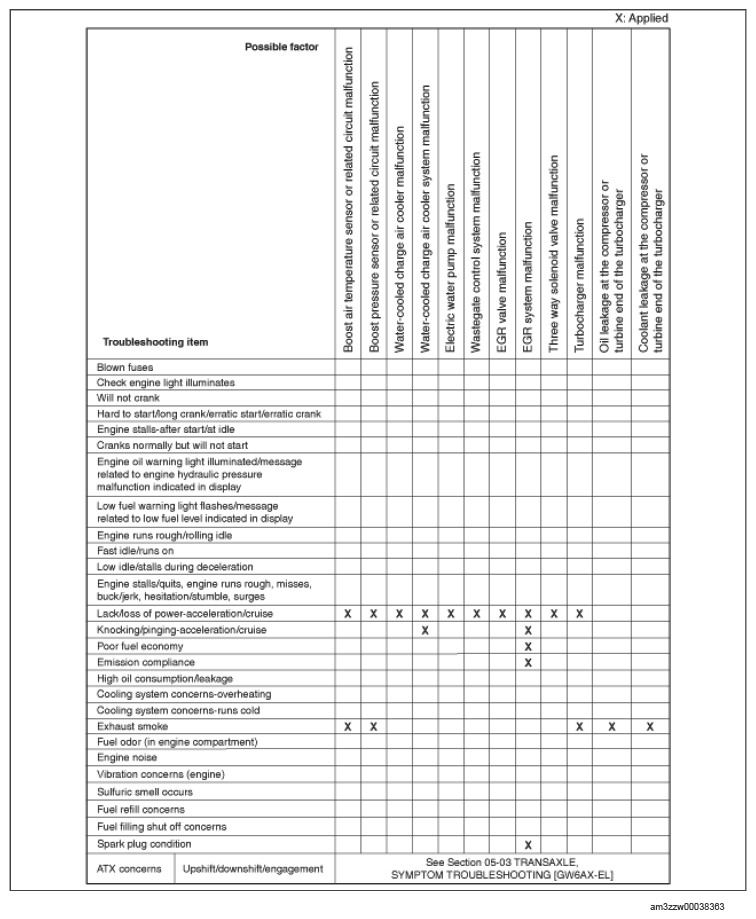

G14575236

Courtesy of MAZDA MOTORS CORP.
