Front Outer Handle Removal/Installation: Notes

NOTE:

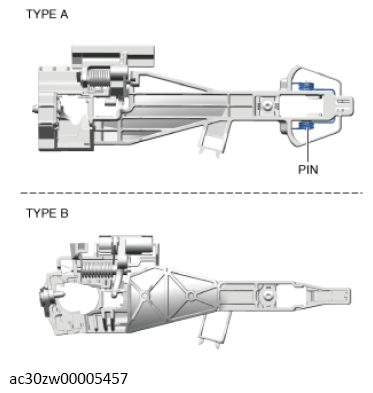

  • The type of the front outer handle can be identified by its shape.
    • Type A With pin (See TYPE A .)
    • Type B No pin (See TYPE B .)
G14489976Courtesy of MAZDA MOTORS CORP.
