Rearview Mirror Removal/Installation

Remove the sensor cover. (with sensor cover)
(See SENSOR COVER REMOVAL/INSTALLATION .)

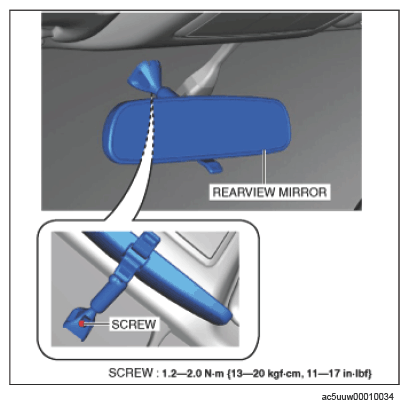

Loosen the screw.

Courtesy of MAZDA MOTORS CORP.

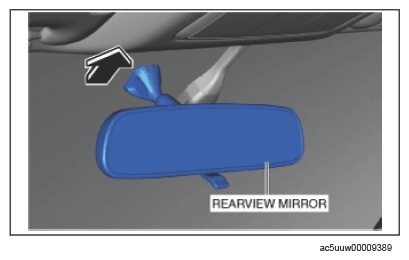

Pull the rearview mirror in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
