Quick Diagnostic Chart

G13671544

Courtesy of MAZDA MOTORS CORP.

G13671545

Courtesy of MAZDA MOTORS CORP.

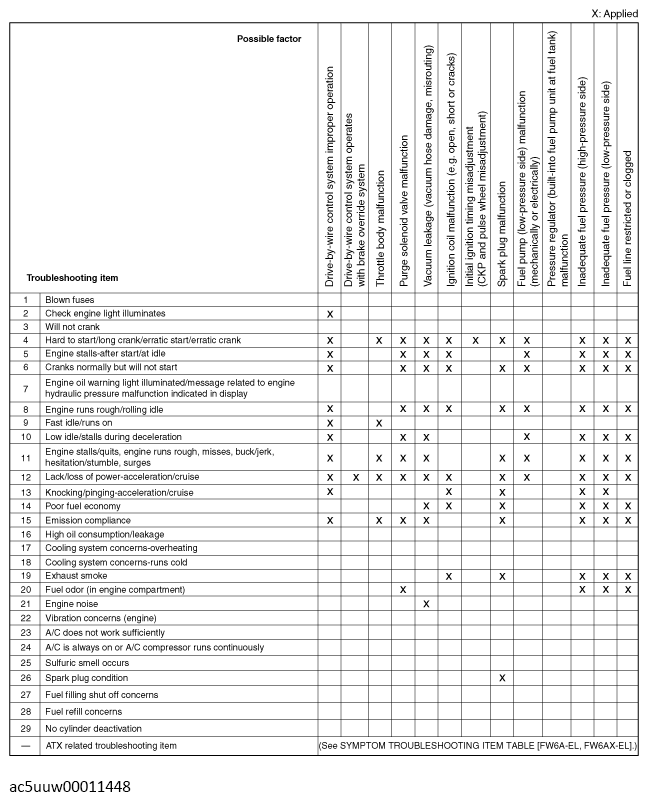

G13671546

Courtesy of MAZDA MOTORS CORP.

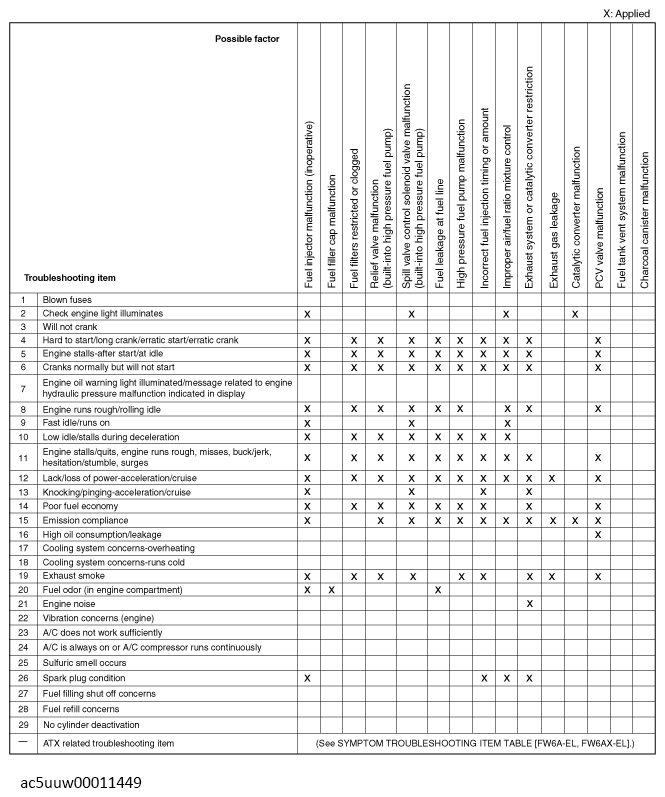

G13671547

Courtesy of MAZDA MOTORS CORP.

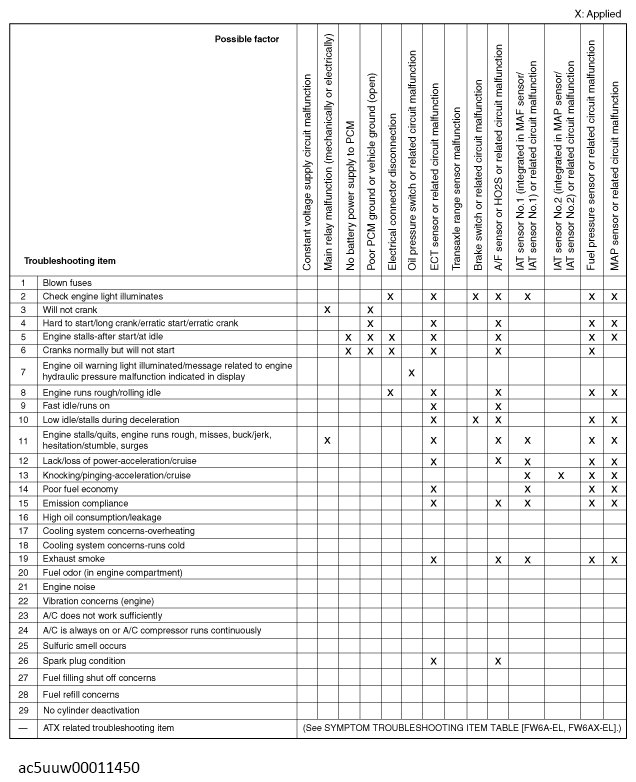

G13671548

Courtesy of MAZDA MOTORS CORP.

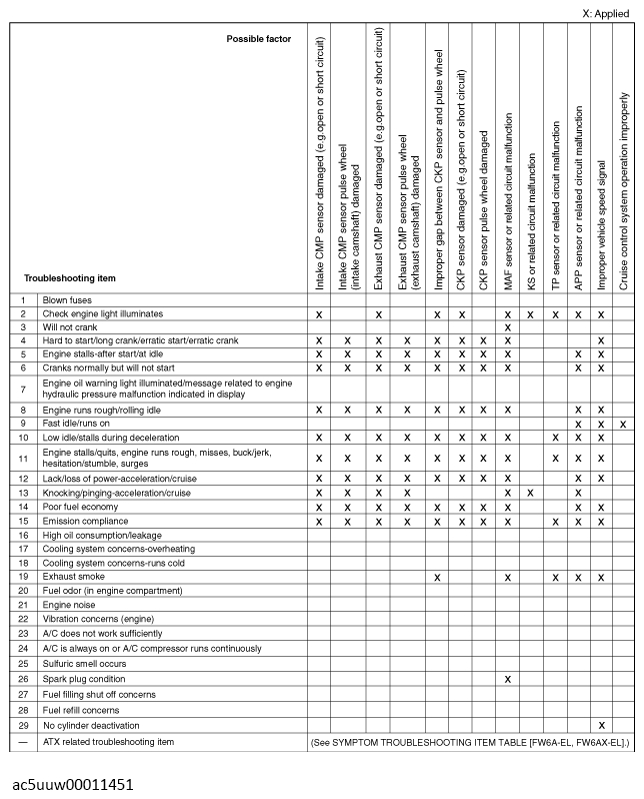

G13671549

Courtesy of MAZDA MOTORS CORP.

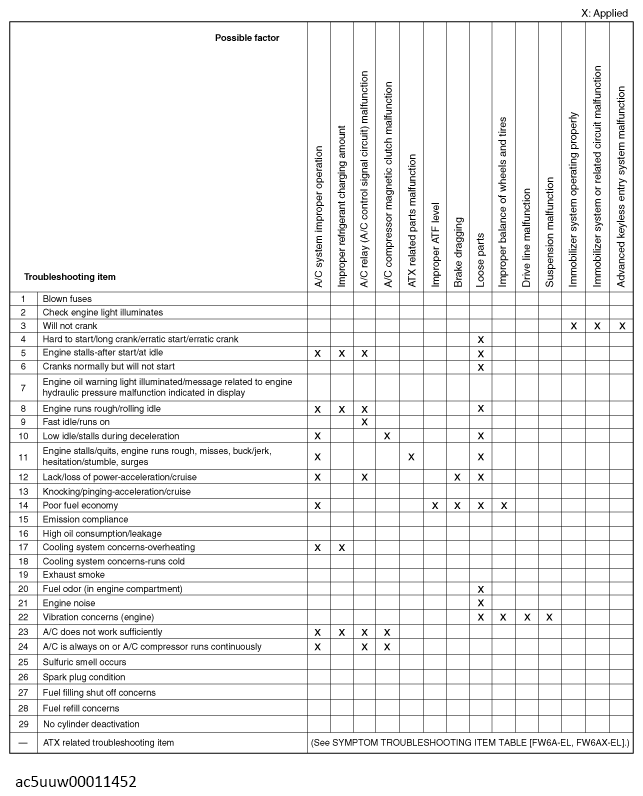

G13671550

Courtesy of MAZDA MOTORS CORP.

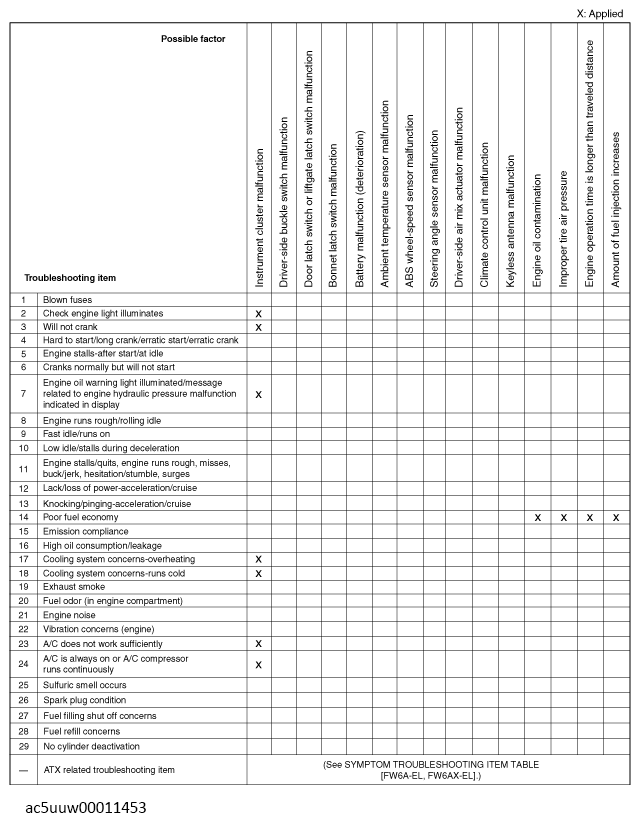

G13671551

Courtesy of MAZDA MOTORS CORP.

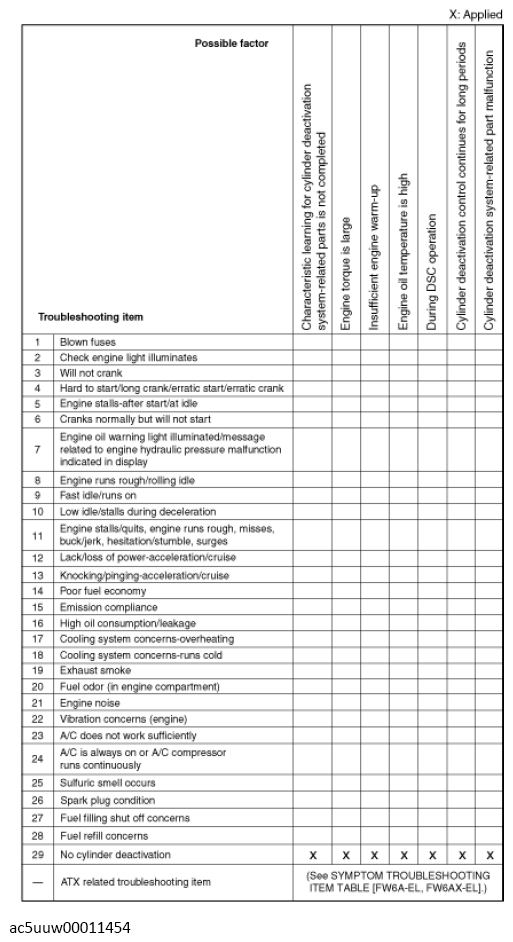

G13671552

Courtesy of MAZDA MOTORS CORP.
