Power Window Subswitch Illumination Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)

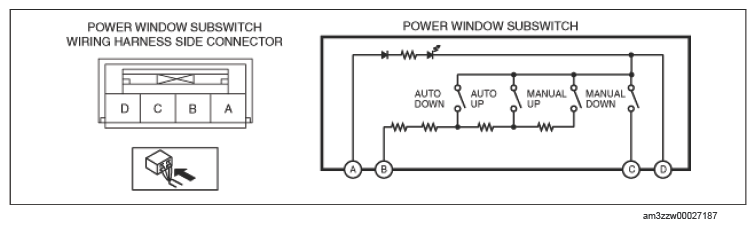

- Apply battery voltage to power window subswitch terminal A, and connect terminal D to ground.TERMINAL SPECIFICATION
B+ Terminal Ground Terminal Operation A D LED Turn On - Verify that the LED is turned on.
- If the LED does not turn on, replace the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
