Rear Power Window Motor Inspection: LH
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Disconnect the rear power window motor connector. (See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

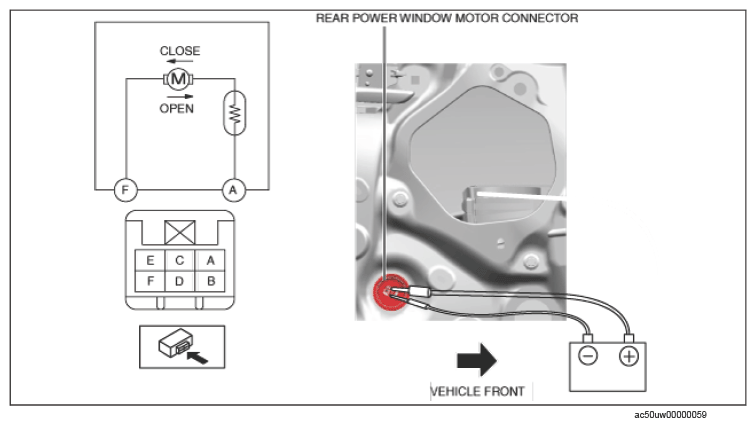

- Apply battery positive voltage and connect the ground to the rear power window motor terminals as indicated in the table below and verify the operation condition.TERMINAL SPECIFICATION
B+ Terminal Ground Terminal Operation A F Close F A Open - If the rear power window motor does not operate as indicated in the table, replace it. (See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
